RJZ-2415S/HP
DC-DC Converter, DIP14 4kV, Single, 2W, 15V @ 133mA, RJZ Series | RECOM Power Inc. RJZ-2415S/HP
Availability: Out of Stock
Package Type: DIP-14
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RJZ-2415S/HP by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

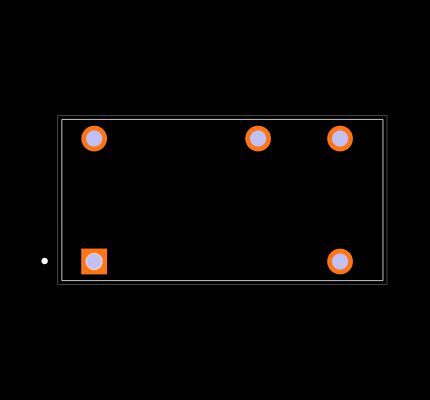

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RJZ-2415S/HP
| Part Name | RJZ-2415S/HP |
| Manufacturer | Recom Power |
| Category | Electronic Components |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 4000.0 |
| Output Current (A) | 0.133 |
| Case Package | DIP14 |
| Series | RJZ |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| Lead Free Status | True |
| Input Voltage (V) | [24.0, 24.0] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-RJZ-2415S!sHP.html |
| Power Rating | 2.0 |
| Output Voltage (V) | [15.0, 15.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
