RK09L114001T
Res POT 10K Ohm 20% 1/20W 1(Elec)/1(Mech)Turn 6mm (12.1 X 33.5mm) Pin Panel Mount/Bracket Mount Tray
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RK09L114001T by ALPS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

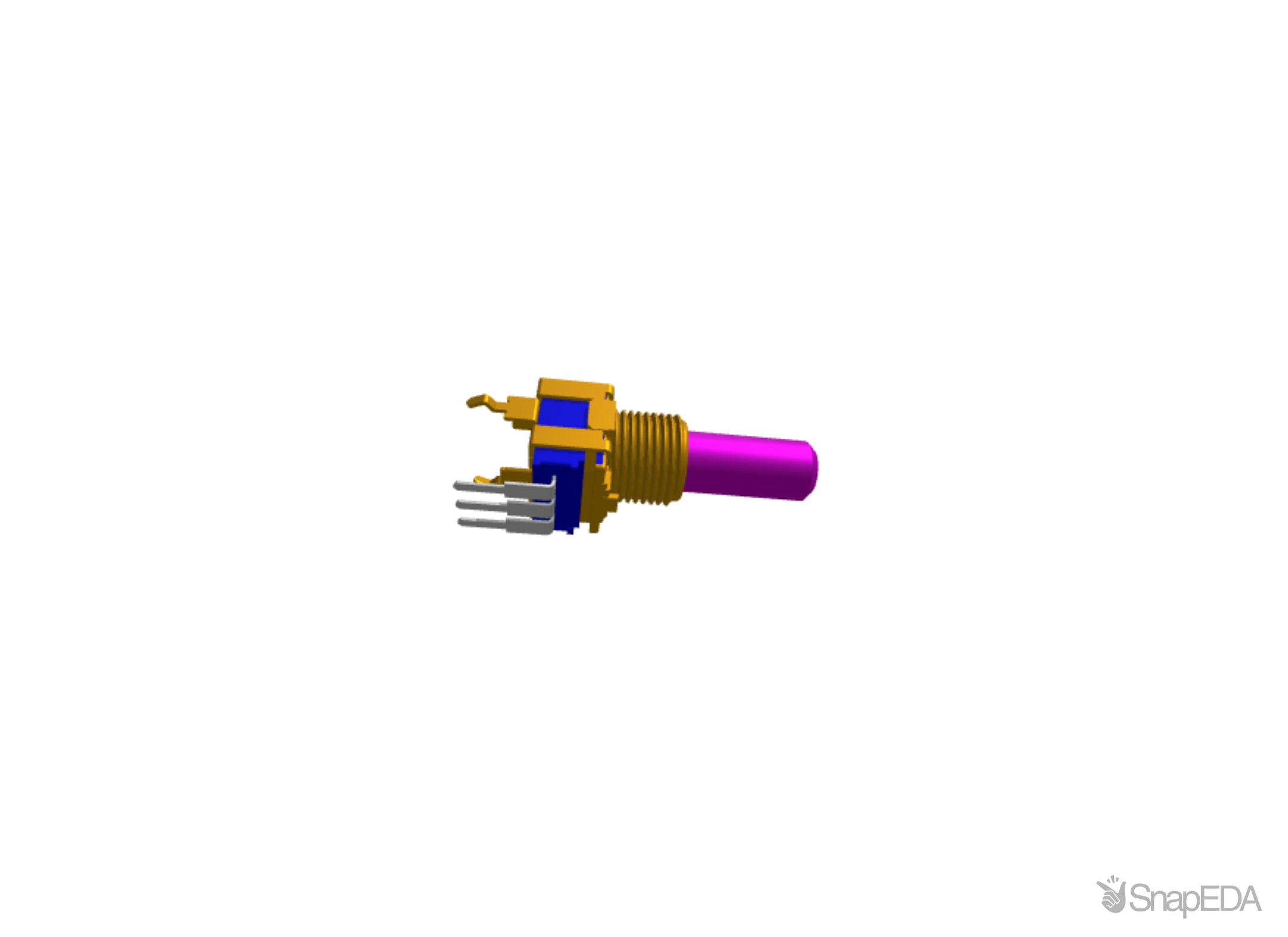

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RK09L114001T
| Part Name | RK09L114001T |
| Manufacturer | ALPS |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Shaft Diameter | 6 mm |
| Mounting Type | Panel Mount, Through Hole |
| Potentiometer Type | Rotary |
| Series | RK09L |
| Termination Style | Pin |
| Number Of Gangs | 1 |
| Number Of Turns | 1 |
| Electrical Taper | Linear |
| Actuator Type | Flatted Shaft |
| Shaft Length | 20 (mm) |
| Power Rating | 0.05 (W) |
| Maximum Resistance | 10 (kΩ) |
| Tolerance | ±20 (%) |
