RK73B2ATTD102J

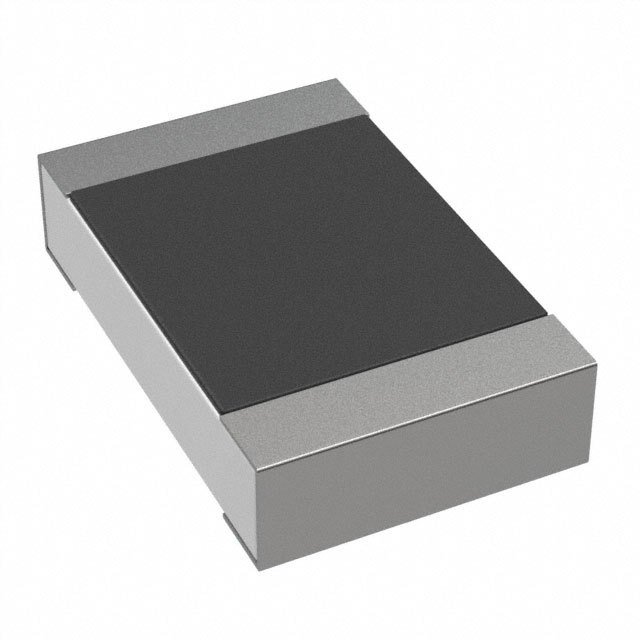

1 kOhms ±5% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Moisture Resistant Thick Film
Availability: Out of Stock
Package Type: 805
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RK73B2ATTD102J by KOA Speer and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RK73B2ATTD102J
| Part Name | RK73B2ATTD102J |
| Manufacturer | KOA Speer |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Package Case | 0805 (2012M) |
| Series | RK73B |
| Resistance | 1 (kΩ) |
| Temperature Coefficient | ±200 (ppm/°C) |
| Technology | Thick Film |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 0.25 (W) |
| Maximum Operating Temperature | +155 (°C) |
| Tolerance | ±5 (%) |
No issues have been reported for the RK73B2ATTD102J
