RK73H2BTTD10R0F
Resistor SMD Resistance technical notation: 10R Temperature range: -55 ... +125 °C Housing type: 1206 Rated voltage: 200 V Resistance: 10 Ohm
Availability: In Stock
Package Type: 1206
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RK73H2BTTD10R0F by KOA Speer and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

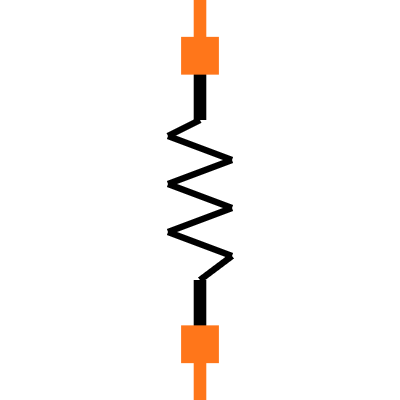

Symbol
No web preview
This Symbol is Available for

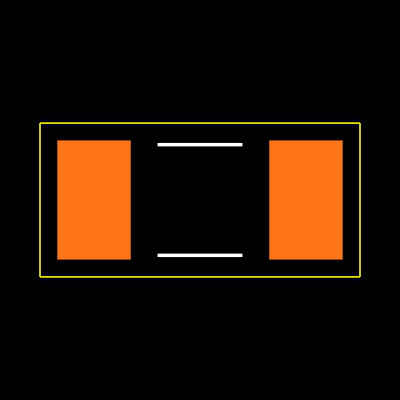

Footprint
No web preview
This Footprint is Available for

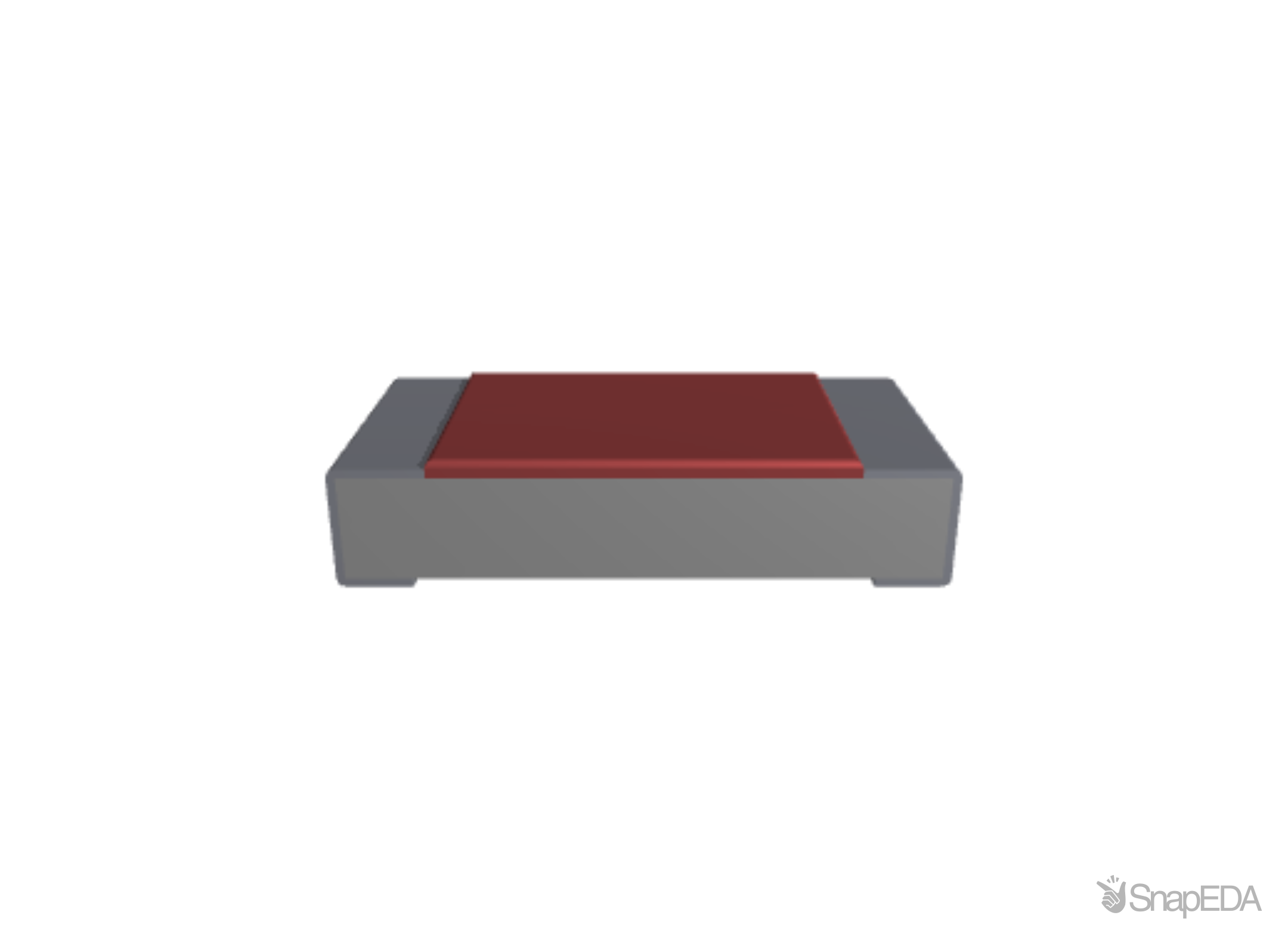

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RK73H2BTTD10R0F
| Part Name | RK73H2BTTD10R0F |
| Manufacturer | KOA Speer |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Package Case | 1206 (3216M) |
| Series | RK73H |
| Resistance | 10 (Ω) |
| Temperature Coefficient | ±100 (ppm/°C) |
| Tolerance | ±1 (%) |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 0.25 (W) |
| Maximum Operating Temperature | +155 (°C) |
| Technology | Thick Film |
