RKZ-241509D
DC-DC Converter,15V,0.067A,-9V,0.111A,21.6-26.4VIn,Enclosed,PCB Mnt,RKZSeries | RECOM Power Inc. RKZ-241509D
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RKZ-241509D by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

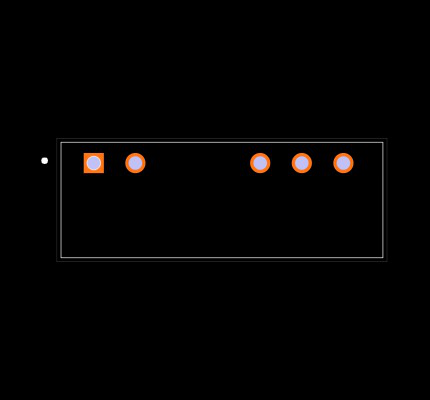

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RKZ-241509D
| Part Name | RKZ-241509D |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 2.0 |
| Isolation Voltage (V) | 3000.0 |
| Case Package | SIP7 |
| Series | RKZ-xx1509 |
| Short Circuit Protection | {'is_url': False, 'value': False} |
| Packaging Type | Tube |
| Lead Free Status | True |
| Output Voltage (V) | [9.0, 15.0] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-RKZ-241509D.html |
| Power Rating | 2.0 |
| Input Voltage (V) | [21.6, 26.4] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the RKZ-241509D
