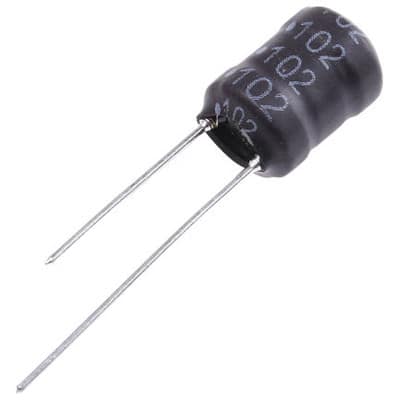

RLB9012-102KL
Inductors,Radial,1000uH,10%,4.30 Ohm DCR Max | Bourns RLB9012-102KL
Availability: Out of Stock
Package Type: RADIAL
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RLB9012-102KL by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RLB9012-102KL
| Part Name | RLB9012-102KL |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 9 (mm) |
| Dimensions | 9 (Dia.) x 12.2 (mm) |
| Lead Diameter | 0.65 (mm) |
| Inductance | 1 mH |
| Maximum Dc Current (A) | 510 (mA) |
| Series | RLB |
| Minimum Operating Temperature | -55 (°C) |
| Height | 12.2 (mm) |
| Mounting Type | Radial |
| Minimum Quality Factor | 20 |
| Maximum Dc Resistance | 2.9 (Ω) |
| Maximum Self Resonant Frequency | 1.3 (MHz) |
| Lead Pitch | 5 (mm) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±10 (%) |
| Terminal Type | Radial Leaded |
| Core Material | Ferrite DR |
No issues have been reported for the RLB9012-102KL
