RLP73K2BR43FTDF
SnapVerified
RLP73K 2B R43 1% 1K RL
Availability: In Stock
Package Type: 3115
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RLP73K2BR43FTDF by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

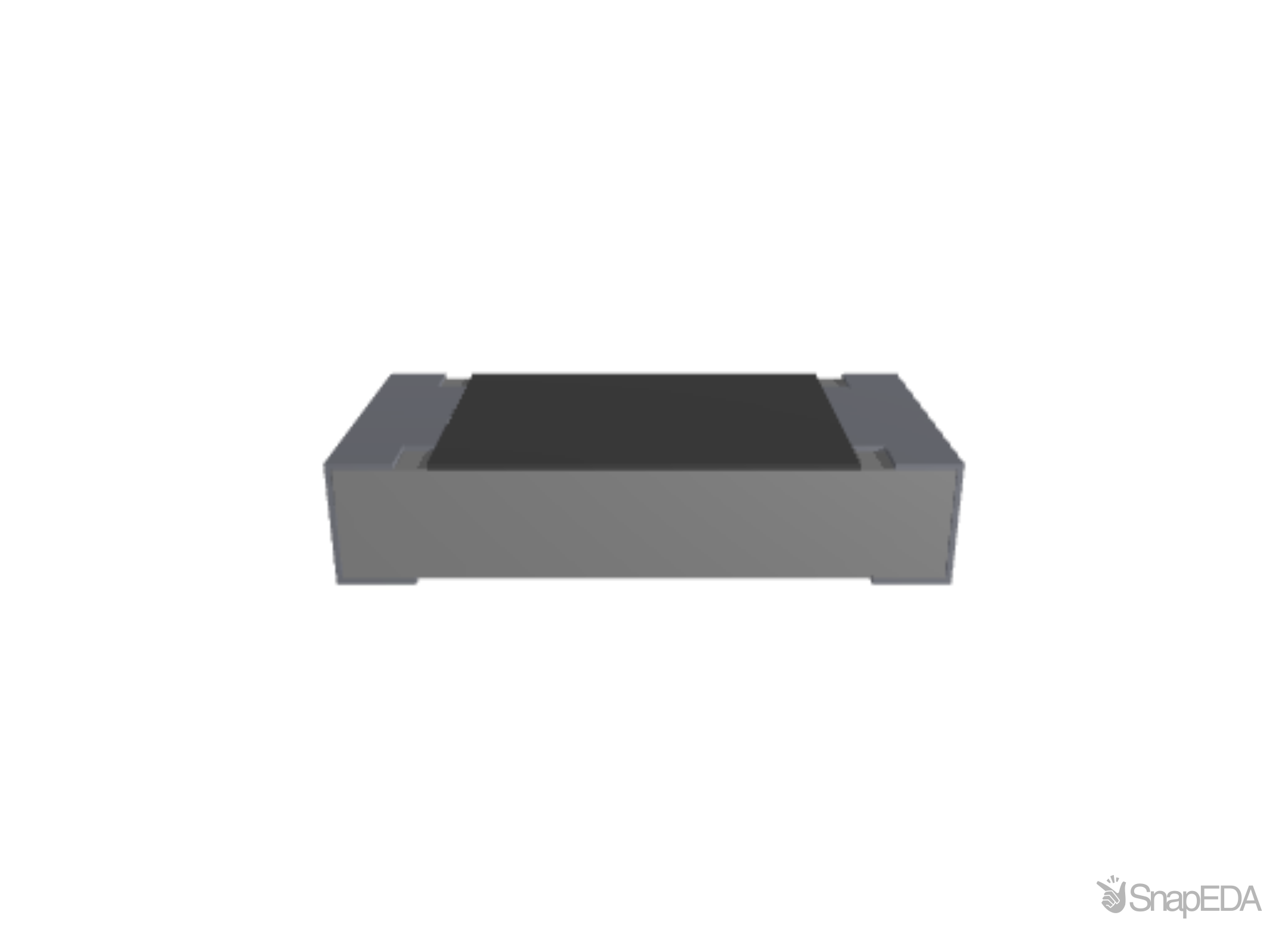

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RLP73K2BR43FTDF
| Part Name | RLP73K2BR43FTDF |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 3.1 x 1.55 x .55 |
| Size Code | 1206 |
| Packaging Method | Taped & Reeled |
| Resistor Type | Current Sensing Resistor |
| Package | 1206 |
| Element Type | Thick Film |
| TE Internal Number | 4-2176055-0 |
| Temperature Coefficient | ±200 |
| Resistance | .43 |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Number of Terminations | 2 |
| Power Rating | .5 |
| Product Type | Fixed Resistor |
| Tolerance | 1% |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
