Work Email

First Name

Last Name

Company

Address

Country

State

City

Zip code

I agree to share this information with Recom Power

* Please fill required fields

Why we ask for this information

The supplier asked us to collect this information for this resource. At SnapEDA, Inc. ("SnapMagic"), we care about our users and only share information with your permission.

⨉

We hope you enjoy your free samples!

Your free samples will be sent to

Design electronics in a snap

Download free symbols, footprints, and 3D models for millions of electronic components. Compatible with all major PCB tools.

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then Request Now

RN-1212S

Name: RN-1212S
Brand: Recom Power

DC/DC converter,12Vin,12Vout 104mA 1.25W | RECOM Power Inc. RN-1212S

Availability: Out of Stock

Package Type: DIP-8

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the RN-1212S by Recom Power and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Free samples

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

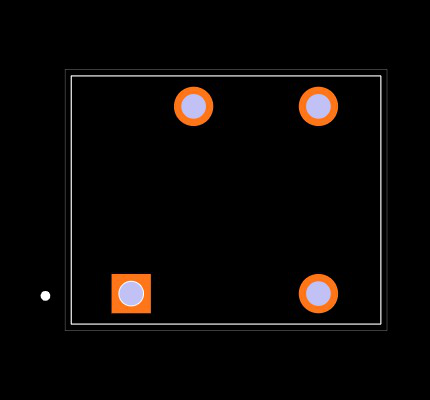

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

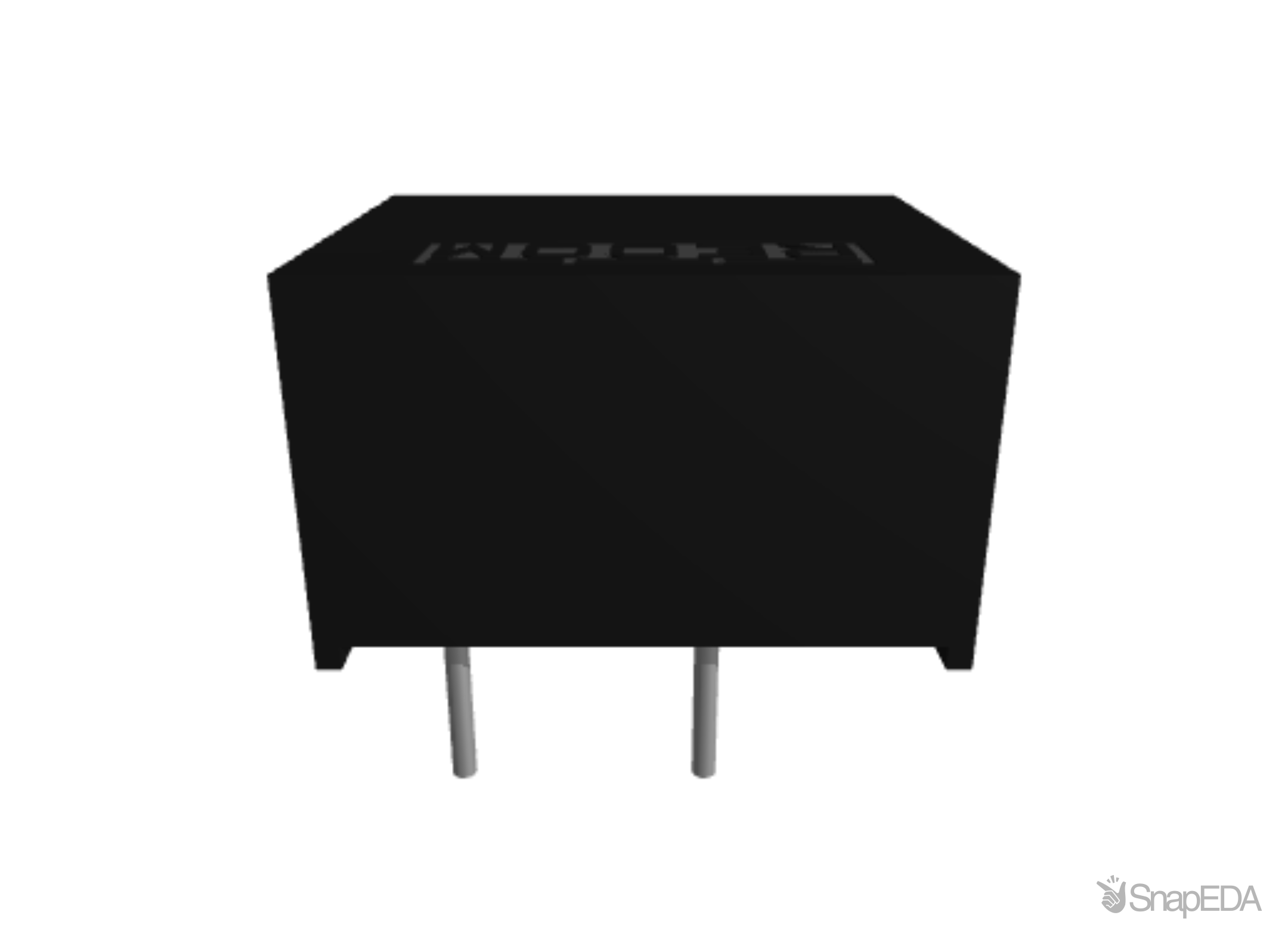

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the RN-1212S

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the RN-1212S

Part Name	RN-1212S
Manufacturer	Recom Power
Category	Power Products
Number of Outputs	1.0
Isolation Voltage (V)	1000.0
Output Current (A)	0.104
Case Package	DIP8
Series	RN
Short Circuit Protection	{'is_url': False, 'value': False}
Packaging Type	Tube
Lead Free Status	True
Output Voltage (V)	[12.0, 12.0]
Product Link	https://recom-power.com/en/products/dc-dc-converters/rec-p-RN-1212S.html
Power Rating	1.25
Input Voltage (V)	[12.0, 12.0]
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Load Regulation	±10 (%)
Number Of Outputs	1
Input Voltage Nominal (V)	12 V dc
Output Current (A)	100 (mA)
Mounting Type	Through Hole
Package	DIP 8
Maximum Temperature	+85 (°C)
Minimum Temperature	-40 (°C)
Input Voltage Range (V)	10.8 → 13.2 V dc
Isolated	Yes
Efficiency	79 → 82 (%)
Length	12.6 (mm)
Isolation Voltage (V)	1 (kV dc)
Series	RN
Power Rating	1.25 (W)
Output Voltage (V)	12 (V dc)
Depth	7.62 (mm)

We could not find inventory or pricing across major distributors for the RN-1212S by Recom Power.
