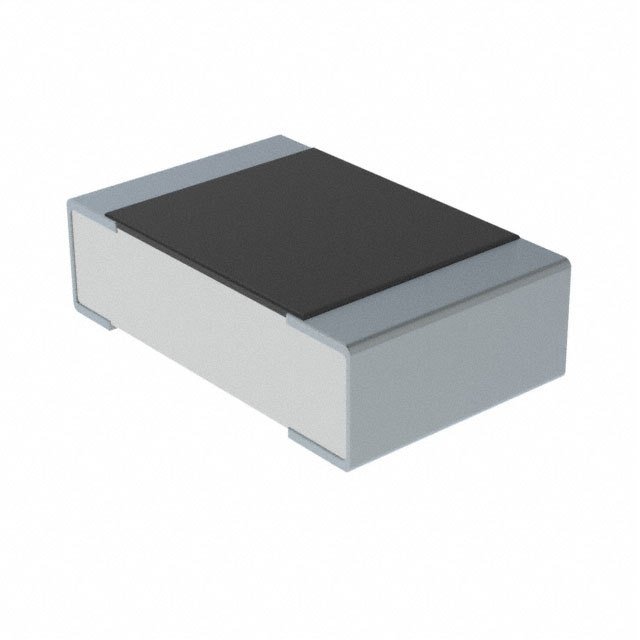

RN73H2ATTD4702B10
RESISTOR, 47K OHM 0.1% 10PPM 0805; Resistance:47kohm; Resistance Tolerance:± 0.1%; Power Rating:0.125W; Voltage Rating:100V; Series:RN73H; Temperature Coefficient:± 10ppm/°C; Resistor Element Material:Thin Film; Resistor Case Style:0805; No. of Pins:2; SVHC:No SVHC (15-Dec-2010); External Length / Height:2.0mm; Package / Case:0805; Temperature Coeff. +:10ppm/°C; Temperature Coeff. -:10ppm/°C; Tolerance +:0.1%; Tolerance -:0.1%; External Depth:0.5mm; External Width:1.25mm; Operating Temperature Max:155°C; Operating Temperature Min:-55°C; Operating Temperature Range:-55°C to +155°C
