RNS10R

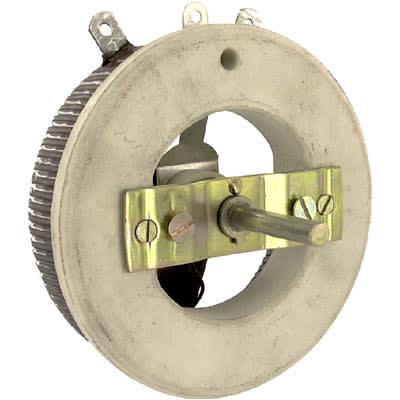

300 WATT MODEL N RHEOSTAT 10% | Ohmite RNS10R
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RNS10R by Ohmite and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RNS10R
| Part Name | RNS10R |
| Manufacturer | Ohmite |
| Category | Electronic Components |
| RoHS | N |
| Life Cycle Status | Verify Status with Factory |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shaft Diameter | 9.53 mm |
| Current Rating (A) | 5.48 (A) |
| Dimensions | 152.4 x 60.33 (mm) |
| Mounting Type | Panel Mount |
| Maximum Voltage Rating (V) | 1225 Vrms |
| Termination Style | Solder Lug |
| Number Of Turns | 1 |
| Length | 60.33 (mm) |
| Shaft Length | 51 (mm) |
| Actuator Type | Linear Shaft |
| Electrical Taper | Linear |
| Power Rating | 300 (W) |
| Maximum Resistance | 10 (Ω) |
| Tolerance | ±10 (%) |
| Core Type | Open |
Inventory for the RNS10R by Ohmite from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
5 x $406.47
|
Visit Site | |
| Mouser |
|
N/A | Visit Site |
No issues have been reported for the RNS10R
