RP60-4812SG
Recom Iso DC-DC Converter,Vin 36 to 75V dc,Vout 12V dc,I/O isolation 1600V dc | RECOM Power Inc. RP60-4812SG
Availability: Out of Stock
Package Type: DIP-8
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RP60-4812SG by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

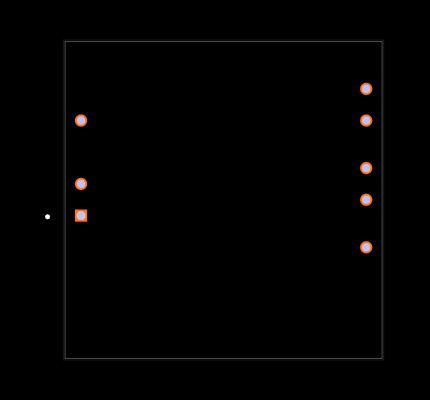

Footprint
No web preview
This Footprint is Available for

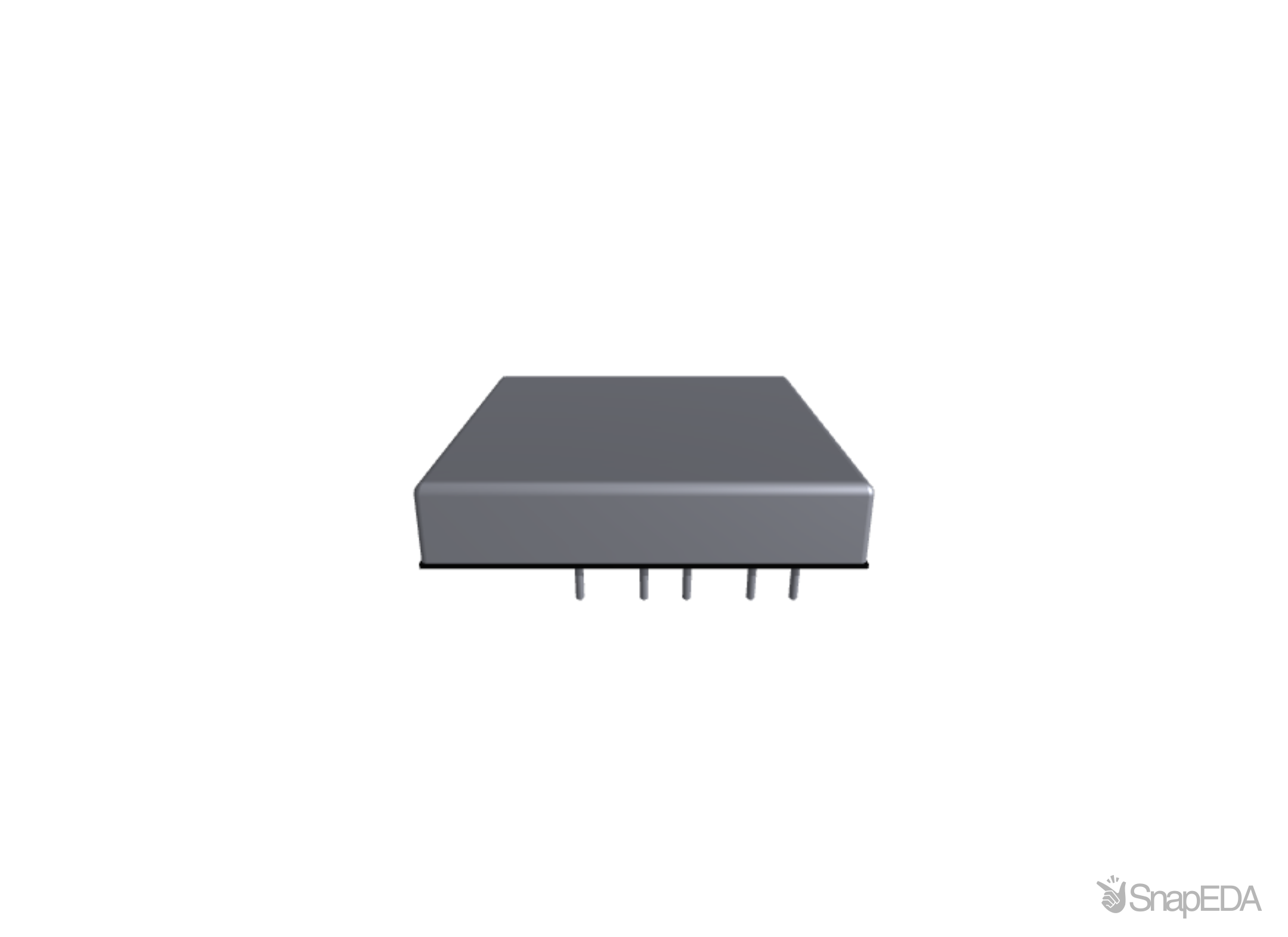

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RP60-4812SG
| Part Name | RP60-4812SG |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 1600.0 |
| Output Current (A) | 5.0 |
| Case Package | 2"x2" |
| Series | RP60-G |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| Lead Free Status | True |
| Output Voltage (V) | [10.8, 13.2] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-RP60-4812SG.html |
| Power Rating | 60.0 |
| Input Voltage (V) | [36.0, 75.0] |
| RoHS | True |
