RP73D1J2K32BTG
SnapVerified
RP 1J 2K32 0.1% 15PPM CUT LENGTH
Availability: Out of Stock
Package Type: 1508
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RP73D1J2K32BTG by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

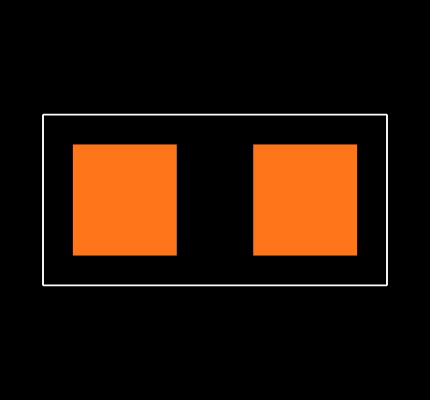

Footprint
No web preview
This Footprint is Available for

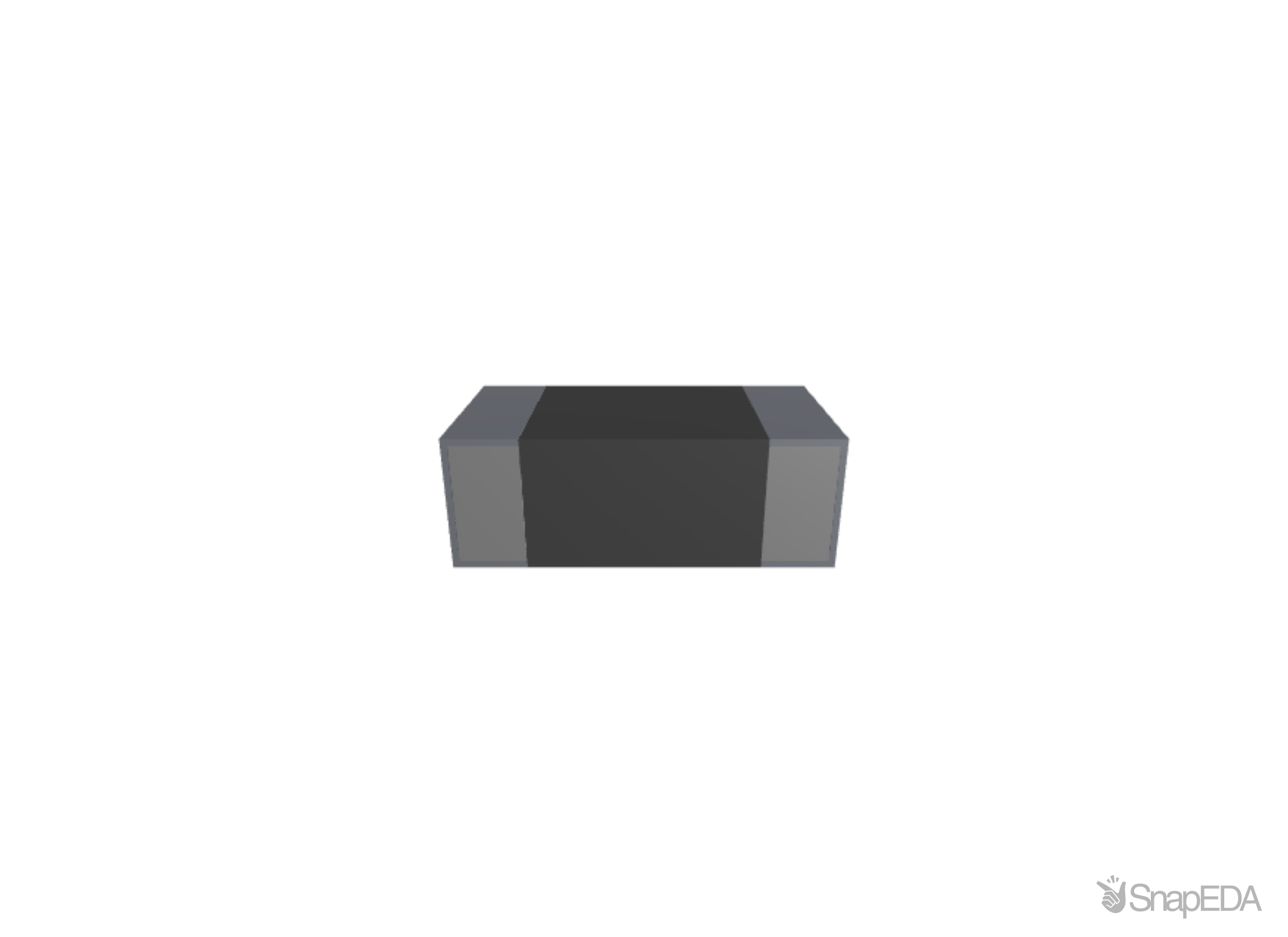

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RP73D1J2K32BTG
| Part Name | RP73D1J2K32BTG |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 1.55 x .8 x .45 |
| Size Code | 0603 |
| Resistance Range | 1kΩ – 1MΩ |
| Resistor Type | Precision Resistor |
| Package | 0603 |
| Packaging Method | Cut Tape Length |
| TE Internal Number | 6-1879745-1 |
| Temperature Coefficient | ±15 |
| Resistance | 2.32K |
| Voltage Rating (V) | 75 |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Number of Terminations | 2 |
| Power Rating | .1 |
| Product Type | Fixed Resistor |
| Tolerance | .1% |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
