RPM5.0-1.0
1A DC/DC-Converter 'INNOLINE' SMD reg
Availability: In Stock
Package Type: BLGA-25
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RPM5.0-1.0 by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

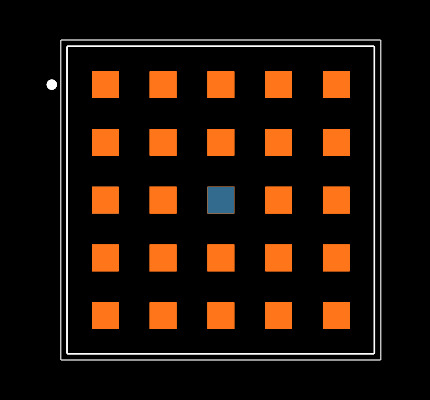

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RPM5.0-1.0
| Part Name | RPM5.0-1.0 |
| Manufacturer | Recom Power |
| Category | SMD |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 0.0 |
| Output Current (A) | 1.0 |
| Case Package | 25 pad LGA |
| Series | RPM-1.0 |
| Short Circuit Protection | True |
| Packaging Type | Tape & Reel |
| high_runner | TRUE |
| Input Voltage (V) | [3.0, 17.0] |
| Lead Free Status | True |
| Product Link | https://recom-power.com/en/products/switching-regulators/switching-regulators-smd/rec-p-RPM5.0-1.0.html |
| Output Voltage (V) | [0.9, 6.0] |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
