RS3-2405DZ/H3
Recom Iso DC-DC Converter,Vin 9 to 27V dc,Vout +/-5V dc,I/O isolation 3000V dc | RECOM Power Inc. RS3-2405DZ/H3
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RS3-2405DZ/H3 by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

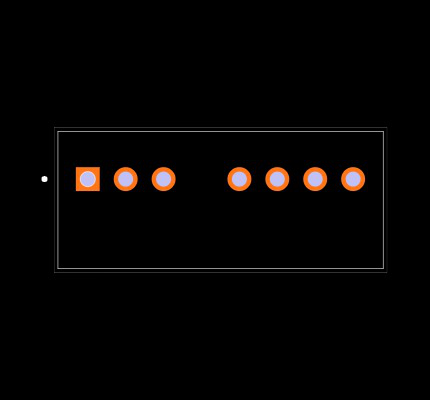

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RS3-2405DZ/H3
| Part Name | RS3-2405DZ/H3 |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 2.0 |
| Isolation Voltage (V) | 3000.0 |
| Case Package | SIP8 |
| Series | RS3-Z |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| high_runner | TRUE |
| Output Voltage (V) | [5.0, 5.0] |
| Lead Free Status | True |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-RS3-2405DZ!sH3.html |
| Power Rating | 3.0 |
| Input Voltage (V) | [9.0, 27.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 2 |
| Input Voltage Nominal (V) | 24 V dc |
| Isolation Voltage (V) | 3 (kV dc) |
| Output Current (A) | ±300 (mA) |
| Mounting Type | Through Hole |
| Package | SIP |
| Series | RS3 |
| Input Voltage Range (V) | 9 → 27 V dc |
| Isolated | Yes |
| Depth | 11.1 (mm) |
| Maximum Temperature | +71 (°C) |
| Length | 21.8 (mm) |
| Minimum Temperature | -40 (°C) |
| Power Rating | 3 (W) |
| Output Voltage (V) | ±5 (V dc) |
Inventory for the RS3-2405DZ/H3 by Recom Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Newark |
|
|
Visit Site | |
| RS Americas |
|
|
Visit Site | |
| Richardson RFPD |
|
22 x $21.23
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
|
|
Visit Site |
No issues have been reported for the RS3-2405DZ/H3
