RSD-100C-12
DC-DC Converter,12V,8.4A,33.6-62.4V In,Enclosed,Panel Mount,RSD Series | MEAN WELL RSD-100C-12
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RSD-100C-12 by Mean Well and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

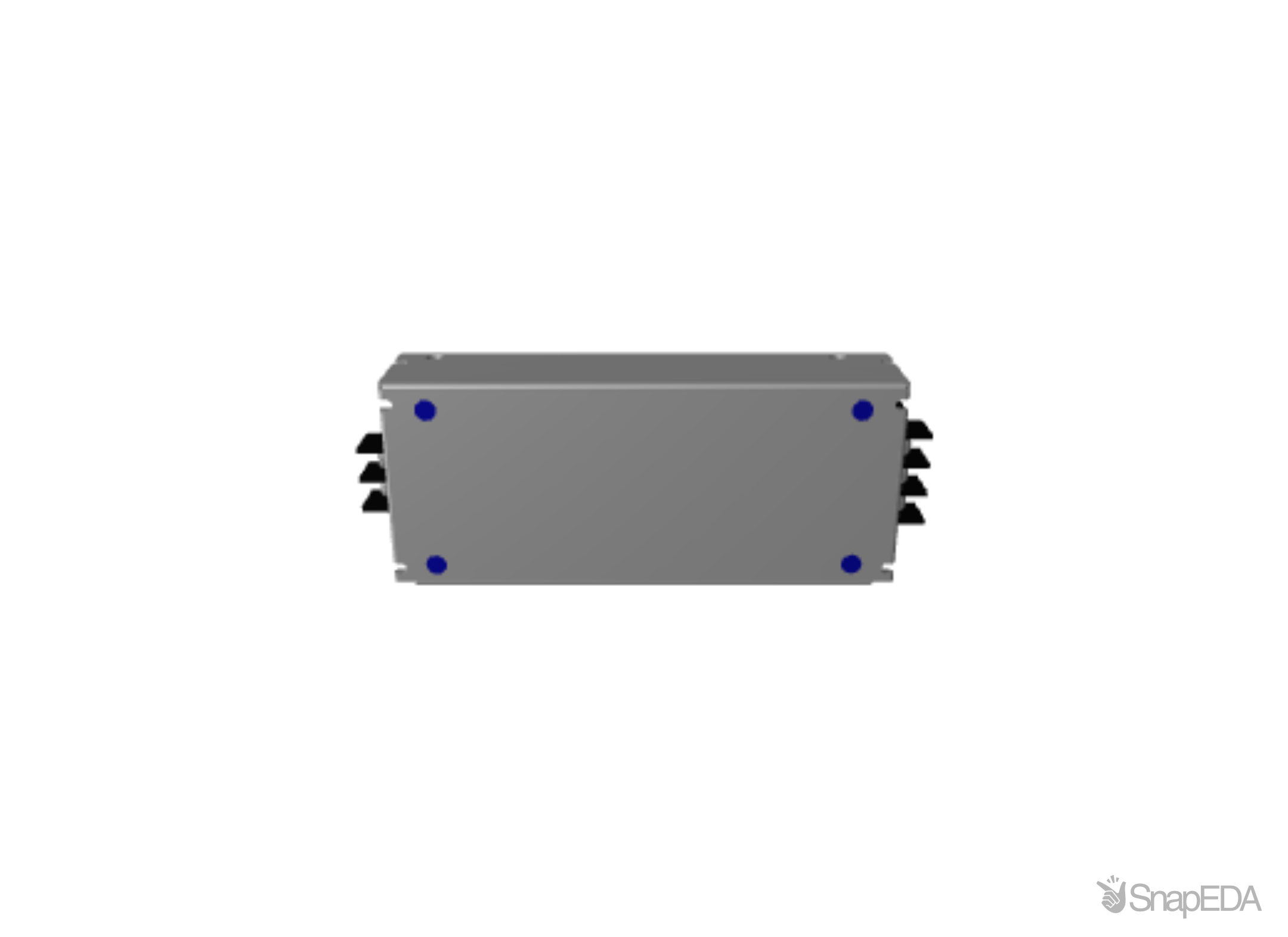

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RSD-100C-12
| Part Name | RSD-100C-12 |
| Manufacturer | Mean Well |
| Category | Power Products |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Load Regulation | ±1 (%) |
| Number Of Outputs | 1 |
| Maximum Temperature | +70 (°C) |
| Output Current (A) | 8.4 (A) |
| Mounting Type | Chassis Mount |
| Series | RSD 100 |
| Input Voltage Range (V) | 28.8 → 67.2 V dc |
| Isolated | Yes |
| Railway Approved | Yes |
| Depth | 36 (mm) |
| Isolation Voltage (V) | 4 (kV dc) |
| Length | 161 (mm) |
| Input Voltage Nominal (V) | 48 V dc |
| Distrelec Product Id | 16926450 |
| Minimum Temperature | -40 (°C) |
| Power Rating | 100.8 (W) |
| Output Voltage (V) | 12 (V dc) |
| Medical Approved | No |
