RSO-1205S
Recom Isolated DC-DC Converter,Vin 9 to 18V dc,Vout 5V dc,I/O isolation 1000V | RECOM Power Inc. RSO-1205S
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RSO-1205S by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

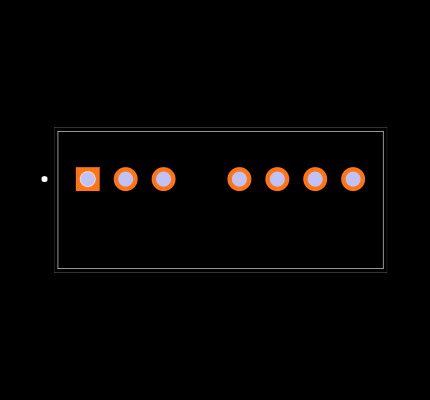

Footprint
No web preview
This Footprint is Available for

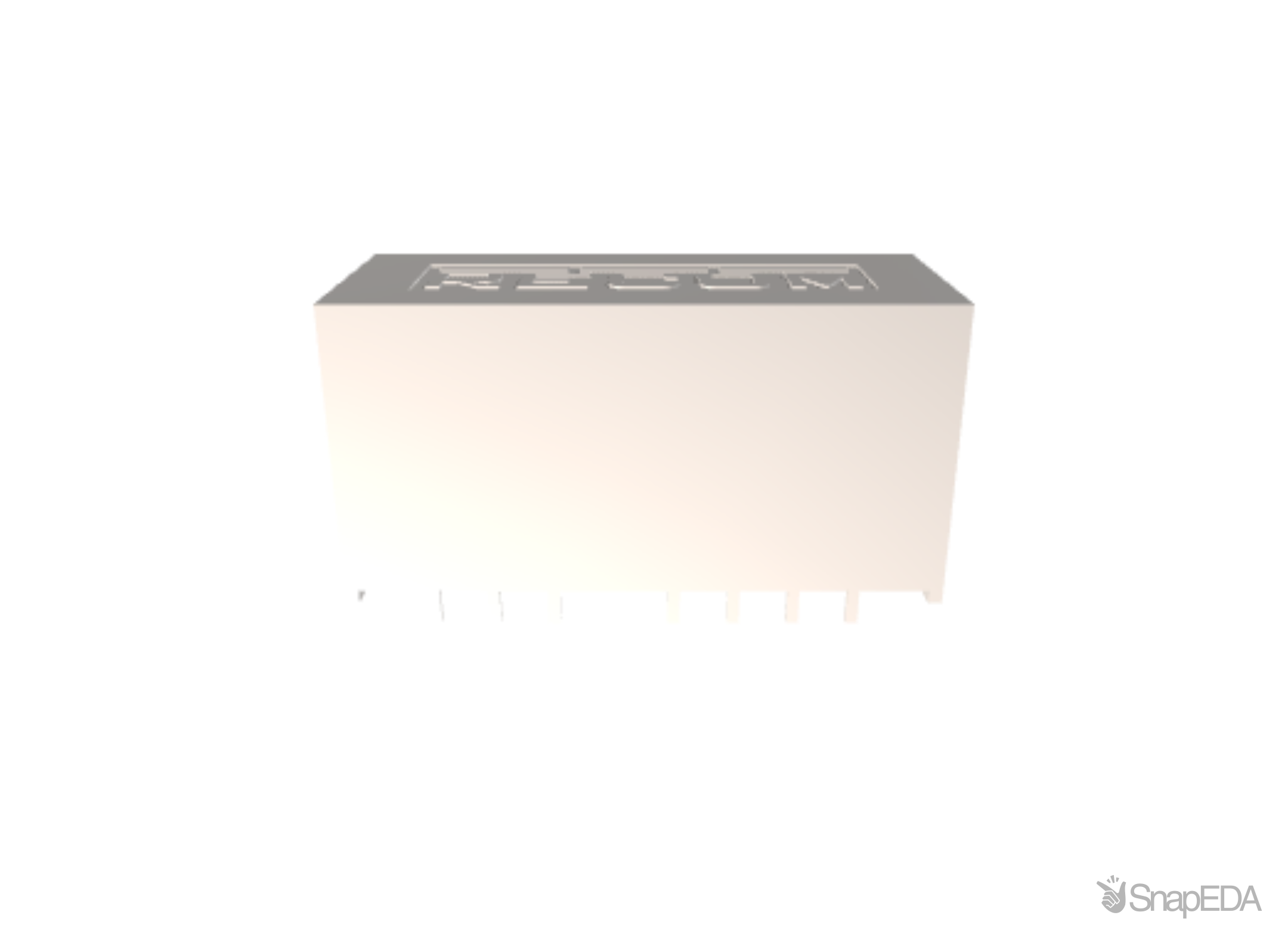

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RSO-1205S
| Part Name | RSO-1205S |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 1000.0 |
| Output Current (A) | 0.2 |
| Case Package | SIP8 |
| Series | RSO |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| Lead Free Status | True |
| Output Voltage (V) | [5.0, 5.0] |
| high_runner | TRUE |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-RSO-1205S.html |
| Power Rating | 1.0 |
| Input Voltage (V) | [9.0, 18.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 11.1 (mm) |
| Number Of Outputs | 1 |
| Maximum Temperature | +85 (°C) |
| Isolation Voltage (V) | 1 (kV dc) |
| Standards Met | RoHS |
| Mounting Type | Through Hole |
| Package | SIP 8 |
| Width | 9.2 (mm) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Range (V) | 4.5 → 18 V dc |
| Isolated | Yes |
| Efficiency | 73 → 78 (%) |
| Length | 21.8 (mm) |
| Load Regulation | ±0.5 (%) |
| Output Voltage (V) | 5 (V dc) |
| Input Voltage Nominal (V) | 12 V dc |
| Power Rating | 1 (W) |
| Output Current (A) | 200 (mA) |
No issues have been reported for the RSO-1205S
