RSO-1212SZ
DC/DC converter,4.5-18Vin,12Vout 83mA,1W | RECOM Power Inc. RSO-1212SZ
Availability: In Stock
CAD Models: Symbol and Footprint
More Resources
Use this component in your design
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RSO-1212SZ by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

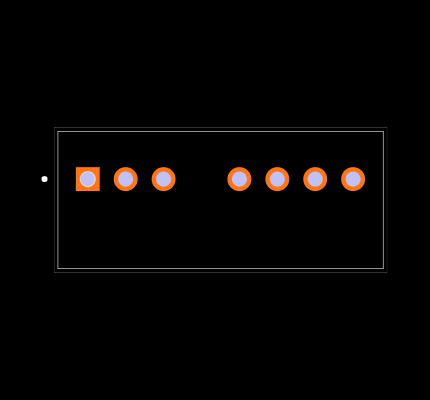

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RSO-1212SZ
| Part Name | RSO-1212SZ |
| Manufacturer | Recom Power |
| Category | Power Products |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 1000.0 |
| Output Current (A) | 0.083 |
| Case Package | SIP8 |
| Series | RSO-Z |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| Lead Free Status | True |
| Input Voltage (V) | [4.5, 18.0] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-RSO-1212SZ.html |
| Power Rating | 1.0 |
| Output Voltage (V) | [12.0, 12.0] |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
