RT314060

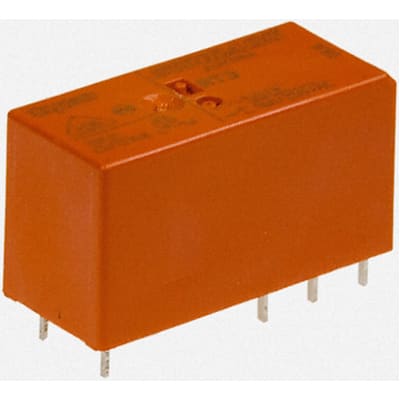

Shrack, Relay,power,PCB,SPDT,16A,60Vdc coil | TE Connectivity RT314060
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RT314060 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RT314060
| Part Name | RT314060 |
| Manufacturer | TE Connectivity |
| Category | Relays |
| Insulation Initial Dielectric Between Contacts & Coil | 5000 |
| Product Weight | 14 |
| Coil Special Features | UL Coil Insulation Class F |
| Contact Limiting Making Current (A) | 30 |
| Height Class (Mechanical) | 15 – 16 |
| Insulation Creepage Between Contact & Coil | .394 |
| Product Width | 12.7 |
| Coil Power Rating DC | 420 |
| Contact Limiting Continuous Current (A) | 16 |
| Contact Switching Voltage (Max) (V) | 400 |
| Coil Resistance | 8570 |
| Contact Current Class (A) | 16 |
| Contact Arrangement | 1 Form C (CO) |
| Contact Number of Poles | 1 |
| Insulation Clearance Between Contact & Coil | 10 |
| TE Internal Number | 1393240-2 |
| Product Height | .618 |
| Insulation Initial Dielectric Between Coil & Contact Class | 4000 |
| Width Class (Mechanical) | 12 – 16 |
| Terminal Type | Plug-In |
| Relay Mounting Type | Printed Circuit Board |
| Product Length | 1.142 |
| Insulation Clearance Class | 8 |
| Insulation Creepage Class | 8 |
| Coil Voltage Rating (V) | 60 |
| Packaging Method | Carton |
| Environmental Ambient Temperature (Max) | 85 |
| Insulation Special Features | Tracking Index of Relay Base PTI250 |
| Power Relay Type | Standard |
| Coil Magnetic System | Monostable, DC |
| RoHS | True |
| Environmental Ambient Temperature Class | 70 – 85 |
| Length Class (Mechanical) | 25 – 30 |
| Contact Limiting Short-Time Current (A) | 16 |
| Contact Limiting Breaking Current (A) | 16 |
| Coil Power Rating Class | 400 – 500 |
| Contact Current Rating (Max) (A) | 16 |
| Contact Voltage Rating (V) | 250 |
| Environmental Category of Protection | RTII |
| Insulation Initial Dielectric Between Open Contacts | 1000 |
| Contact Material | AgNi90/10 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | PCB Mount |
| Terminal Type | Through Hole |
| Coil Power | 400 (mW) |
| Series | RT1 |
| Latching | No |
| Coil Voltage (V) | 60 (V dc) |
| Number Of Poles | 1 |
| Length | 29 (mm) |
| Contact Configuration | SPDT |
| Coil Resistance | 8570 (Ω) |
| Application | Power |
| Depth | 12.7 (mm) |
| Maximum Switching Voltage Ac (V) | 400 (V ac) |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Switching Power Ac | 4 kVA |
| Isolation Coil To Contact | 5 (kVrms) |
| Height | 15.7 (mm) |
| Maximum Operating Temperature | +85 (°C) |
| Switching Current (A) | 16 (A) |
| Contact Material | Gold Plated |
