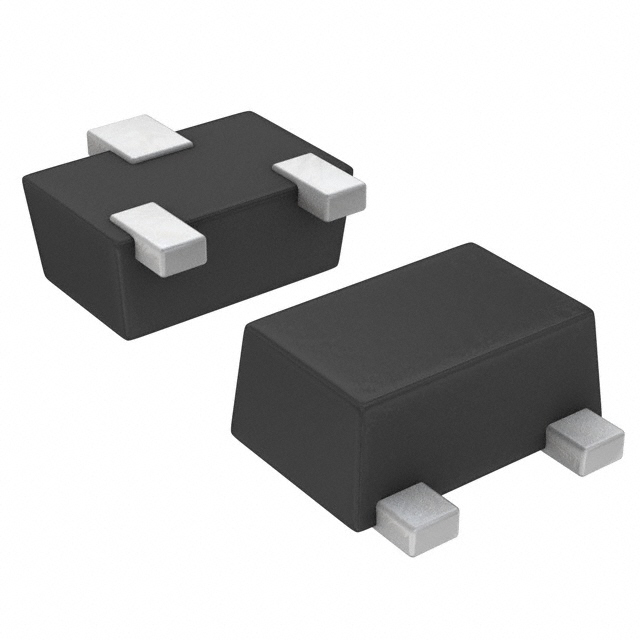

RUM002N05T2L
N-Channel 50 V 200mA (Ta) 150mW (Ta) Surface Mount VMT3
Availability: In Stock
Package Type: SOT-723
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RUM002N05T2L by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

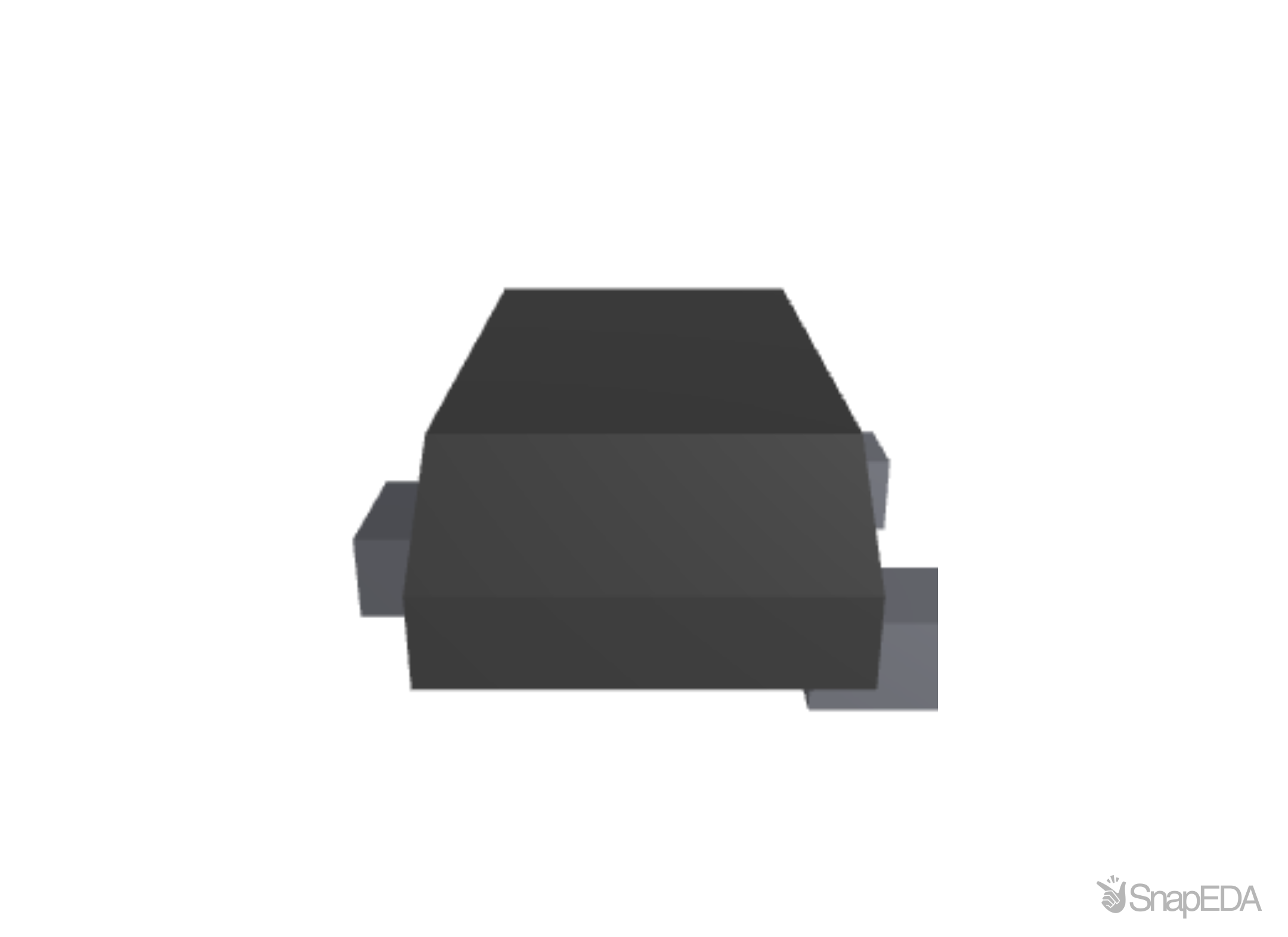

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RUM002N05T2L
| Part Name | RUM002N05T2L |
| Manufacturer | Rohm |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Drain Source Voltage (V) | 50 V |
| Width | 0.8 (mm) |
| Mounting Type | Surface Mount |
| Maximum Continuous Drain Current (A) | 200 mA |
| Maximum Gate Source Voltage (V) | -8 V, +8 V |
| Series | RUM002N05 |
| Maximum Power Dissipation | 150 mW |
| Length | 1.2 (mm) |
| Channel Type | N |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage (V) | 1 (V) |
| Height | 0.5 (mm) |
| Package Type | SOT-723 |
| Number Of Elements Per Chip | 1 |
| Minimum Gate Threshold Voltage (V) | 0.3 (V) |
| Forward Diode Voltage (V) | 1.2 (V) |
| Maximum Drain Source Resistance | 7.2 Ω |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
