RW-1205S
3W DC/DC-Converter 'ECONOLINE' DIP24 Mini 1kV reg
Availability: Out of Stock
Package Type: DIP-24
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RW-1205S by Recom Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

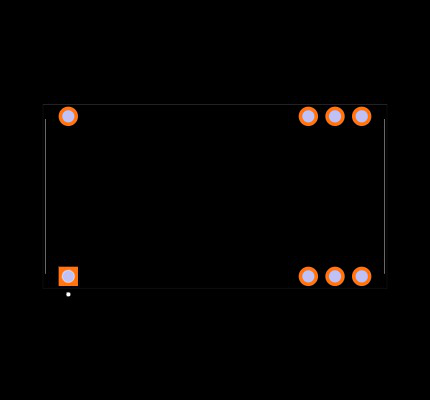

Footprint
No web preview
This Footprint is Available for

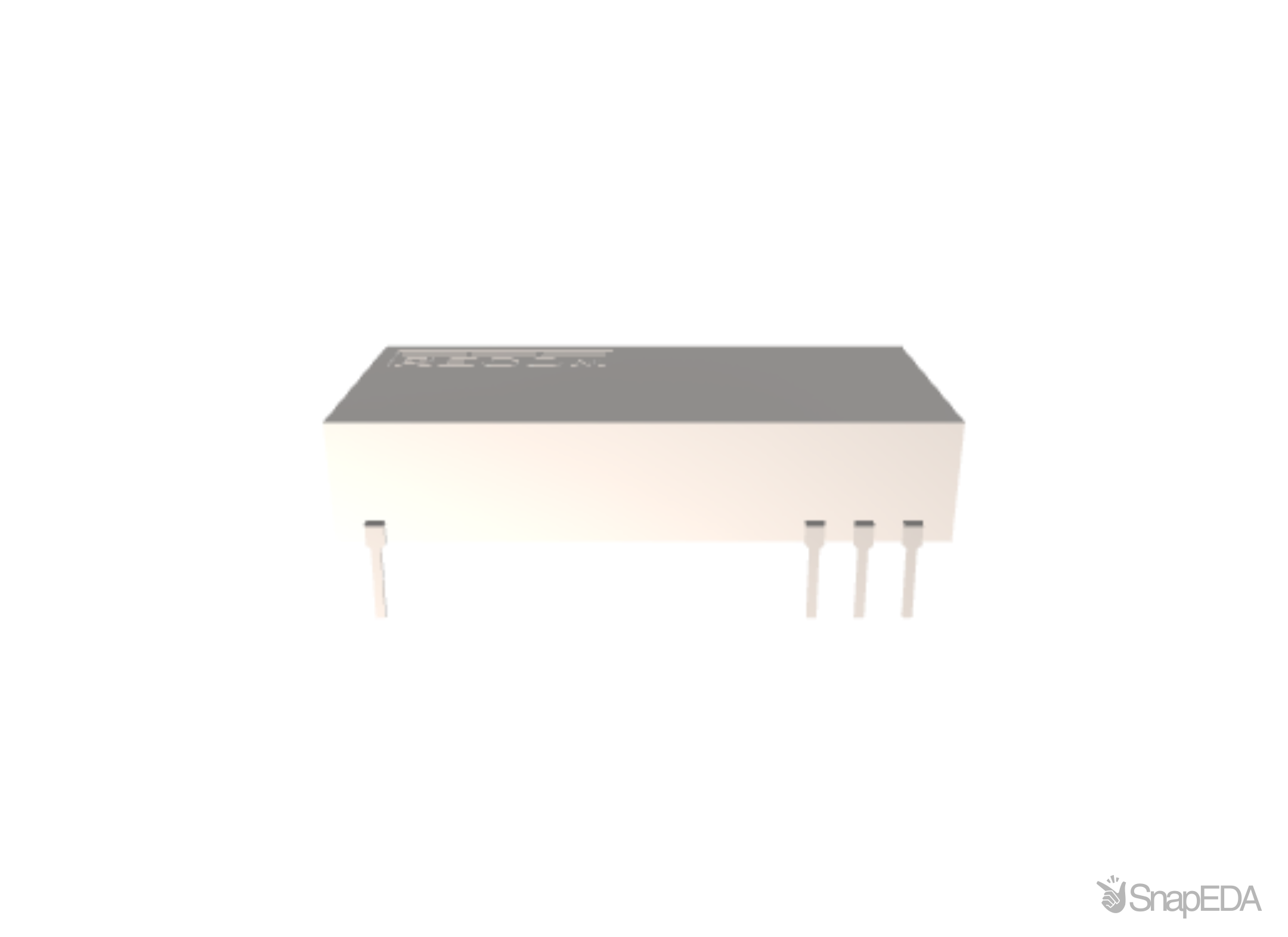

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RW-1205S
| Part Name | RW-1205S |
| Manufacturer | Recom Power |
| Category | Isolated DC/DC Converters |
| Number of Outputs | 1.0 |
| Isolation Voltage (V) | 1000.0 |
| Output Current (A) | 0.6 |
| Case Package | DIP24 Mini |
| Series | RW-S |
| Short Circuit Protection | True |
| Packaging Type | Tube |
| Lead Free Status | True |
| Output Voltage (V) | [5.0, 5.0] |
| Product Link | https://recom-power.com/en/products/dc-dc-converters/rec-p-RW-1205S.html |
| Power Rating | 3.0 |
| Input Voltage (V) | [9.0, 18.0] |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 7 (mm) |
| Number Of Outputs | 1 |
| Maximum Temperature | +80 (°C) |
| Isolation Voltage (V) | 1 (kV dc) |
| Output Current (A) | 600 (mA) |
| Mounting Type | Through Hole |
| Package | DIP |
| Width | 14.73 (mm) |
| Series | RW |
| Input Voltage Range (V) | 9 → 18 V dc |
| Isolated | Yes |
| Efficiency | 73 (%) |
| Length | 32.26 (mm) |
| Load Regulation | ±0.5 (%) |
| Minimum Temperature | -40 (°C) |
| Input Voltage Nominal (V) | 12 V dc |
| Power Rating | 3 (W) |
| Output Voltage (V) | 5 (V dc) |
