RXEF250
Polymeric PTC Resettable Fuse 72V 2.5 A Ih Through Hole Radial, Disc
Availability: Out of Stock
Package Type: RADIAL
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the RXEF250 by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

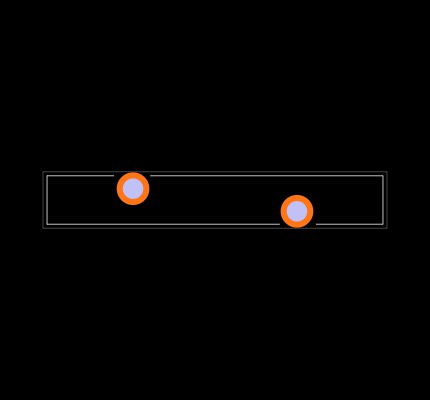

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the RXEF250
| Part Name | RXEF250 |
| Manufacturer | Littelfuse |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 0.05 (Ω) |
| Hold Current (A) | 2.5 (A) |
| Maximum Current (A) | 40 A |
| Voltage Rating (V) | 72 (V) |
| Lead Orientation | Radial |
| Height | 25.4 (mm) |
| Width | 3 (mm) |
| Length | 20.8 (mm) |
| Power Dissipation | 2.5 (W) |
| Trip Current (A) | 5 (A) |
| Time To Trip | 16 (s) |
| Maximum Resistance | 130 (mΩ) |
