RY-12W-K

Name: RY-12W-K
Brand: Fujitsu

Signal Relays Mini Signal, 12VDC

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the RY-12W-K by Fujitsu and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

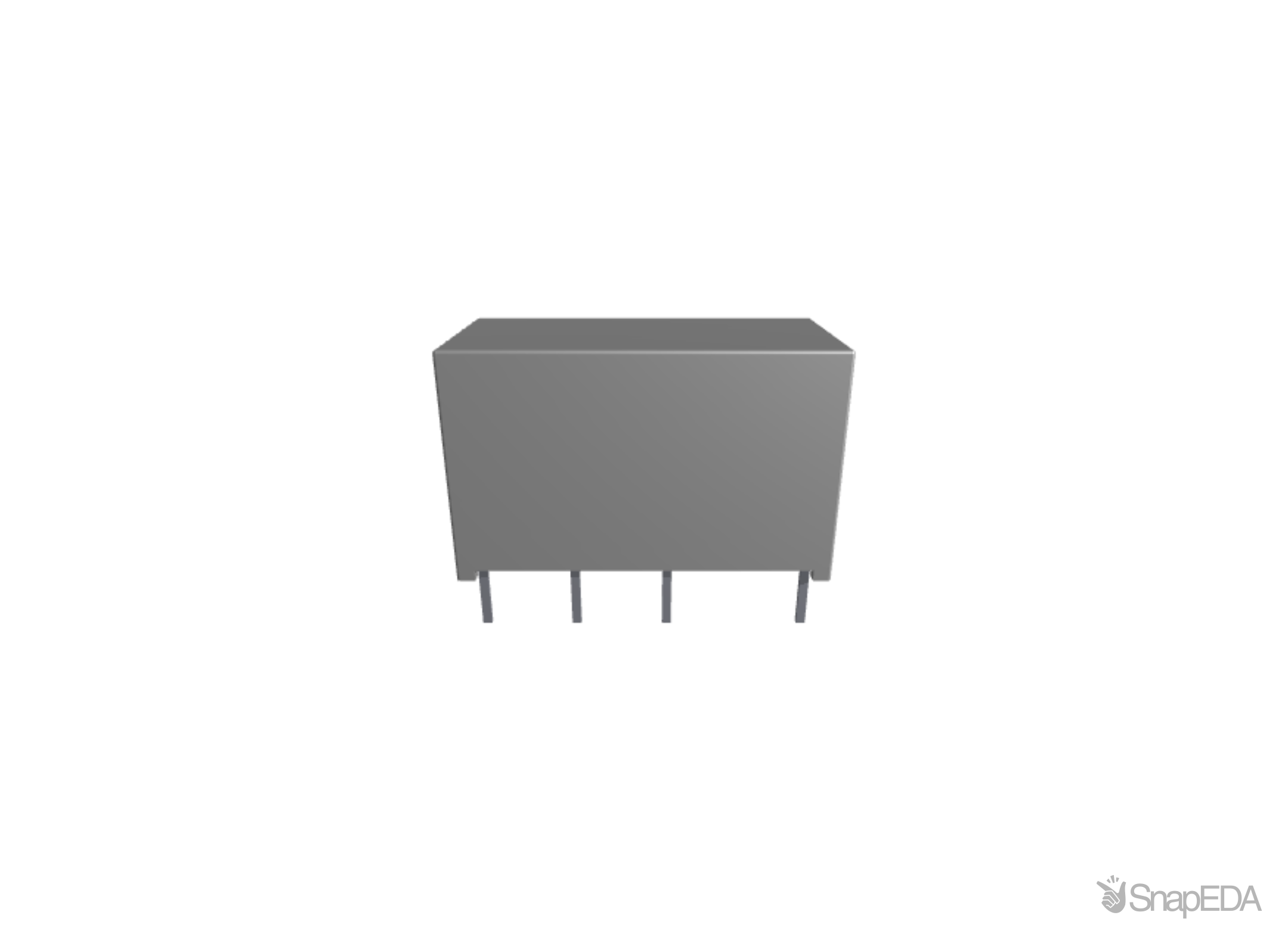

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the RY-12W-K

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the RY-12W-K

Part Name	RY-12W-K
Manufacturer	Fujitsu
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Maximum Switching Voltage Dc (V)	60 (V dc)
Application	Signal
Maximum Switching Power Dc	24 W
Terminal Type	Through Hole
Maximum Switching Current Ac (A)	1 A
Coil Power	150 (mW)
Isolation Coil To Contact	1 (kV ac)
Coil Resistance	960 (Ω)
Maximum Operating Temperature	+90 (°C)
Switching Current (A)	1 (A)
Coil Voltage (V)	12 (V dc)
Latching	No
Contact Configuration	DPDT
Maximum Switching Current Dc (A)	1 A
Length	20.2 (mm)
Maximum Switching Voltage Ac (V)	120 (V ac)
Maximum Switching Power Ac	60 (VA)
Number Of Poles	2
Mounting Type	Through Hole
Series	RY
Depth	9.8 (mm)
Height	12.5 (mm)
Minimum Operating Temperature	-30 (°C)
Contact Material	Silver Alloy

We could not find inventory or pricing across major distributors for the RY-12W-K by Fujitsu.
