S01-01-RCS380

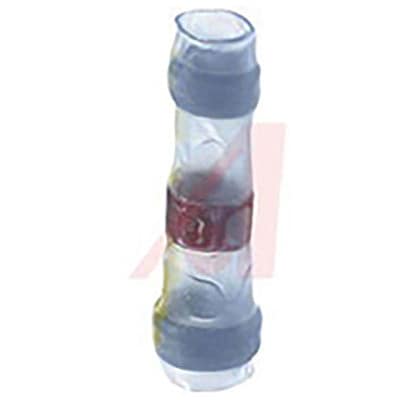

SolderSleeve, ShieldTerminator,TransBlue,Polyvinylidene,16.5mmL,S01 M83519Series | TE Connectivity S01-01-RCS380
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the S01-01-RCS380 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the S01-01-RCS380
| Part Name | S01-01-RCS380 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Pre-Installed Lead | No |
| Splice Type | Shield Terminator |
| MIL/NAS Specification (MIL-S-83519, NAS-1747) | AS83519 |
| Temperature Indicator Type | Thermochromic |
| Recovered Inside Diameter (Max) | .035 |
| Operating Temperature (Max) | 150 |
| TE Internal Number | 6651430004 |
| Expanded Inside Diameter (Min) | 1.9 |
| Shield Outside Diameter (Min) | .9 |
| Resistance Properties | Immersion Protection |
| Termination Method | Solder |
| Dielectric Outside Diameter (Max) | 1.9 |
| Government Qualified | Yes |
| Overall Length | .65 |
| Product Type | Shield Terminator |
| Temperature Indicator | Yes |
| Wire Temperature (Max) | 150 |
| Jacket Outside Diameter | .075 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
