S03-08-R

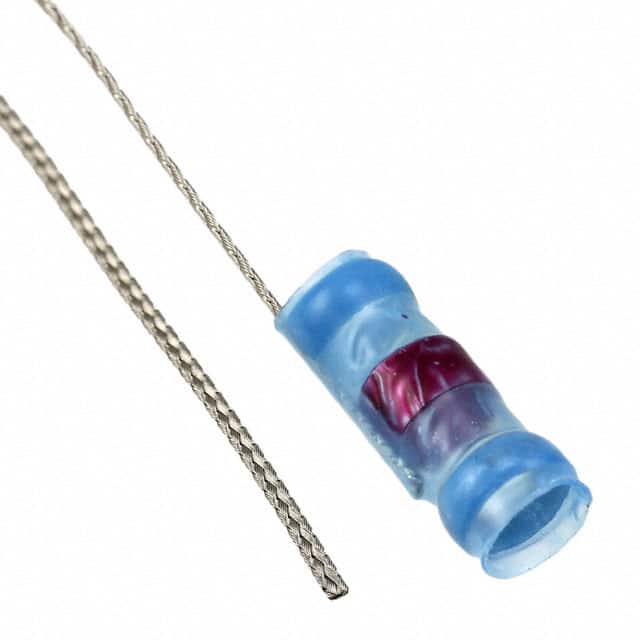

Heat Shrink Tubing and Sleeves S03-08-R
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the S03-08-R by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the S03-08-R
| Part Name | S03-08-R |
| Manufacturer | TE Connectivity |
| Pre-Installed Lead | Yes |
| Jacket Outside Diameter | .2 |
| Resistance Properties | Splash Protection |
| Temperature Indicator Type | Thermochromic |
| Recovered Inside Diameter (Max) | 2.15 |
| Operating Temperature (Max) | 150 |
| TE Internal Number | 587725-000 |
| Expanded Inside Diameter (Min) | 5.08 |
| MIL/NAS Specification (MIL-S-83519, NAS-1747) | Yes |
| Government Qualified | No |
| Pre-Installed Lead Type | Braid Strap 654 |
| Overall Length | 16.5 |
| Product Type | Shield Terminator |
| Temperature Indicator | Yes |
| Wire Temperature (Max) | 125 |
| RoHS | N |
| Shield Outside Diameter (Min) | 2.15 |
