S1791-42R

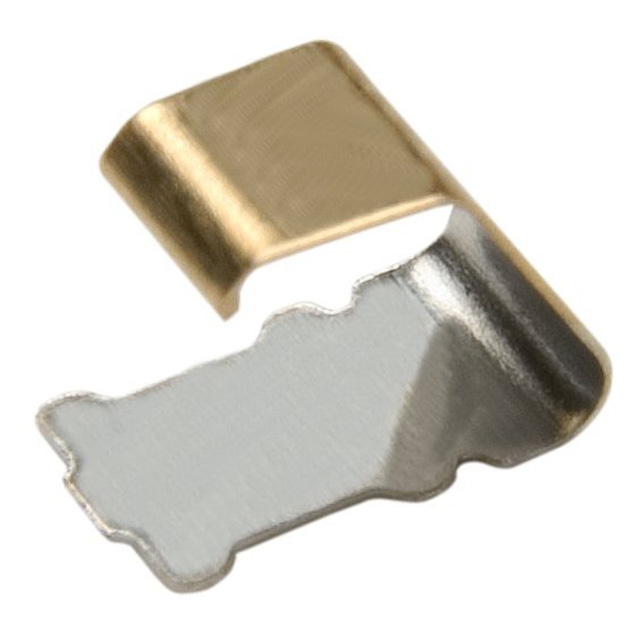

SMT Spring Contact (also known as Grounding Contact or Shield Finger), 4.0mm high, selective gold + tin, C-shape contact, Tape & Reeled
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the S1791-42R by Harwin and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

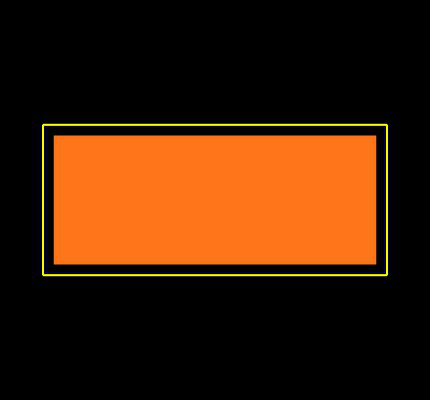

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the S1791-42R
| Part Name | S1791-42R |
| Manufacturer | Harwin |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 3 (A) |
| Dimensions | 7 x 2.05 x 4 (mm) |
| Fixing Method | Surface Mount |
| Series | EZ-BoardWare |
| Material | Titanium Copper Alloy |
| Height | 4 (mm) |
| Width | 2.05 (mm) |
| Length | 7 (mm) |
| Contact Plating | Gold |
No issues have been reported for the S1791-42R
