S25-022

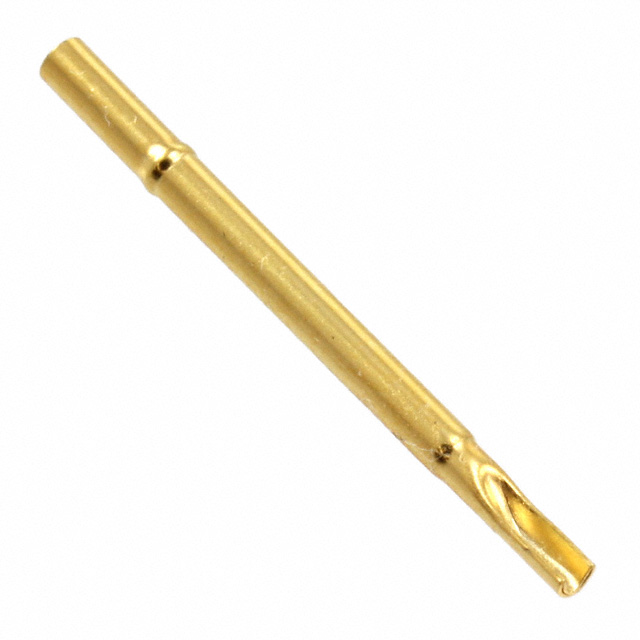

Sleeve for Two Part Spring Probe P25-0822 and P25-XX23, 23.7mm long, 5.8mm retaining feature, solder cup for 22-30 AWG
