S25FL127SABMFI101
NOR Flash Serial-SPI 3V 128Mbit 128M x 1bit 8-Pin SOIC Tube
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the S25FL127SABMFI101 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

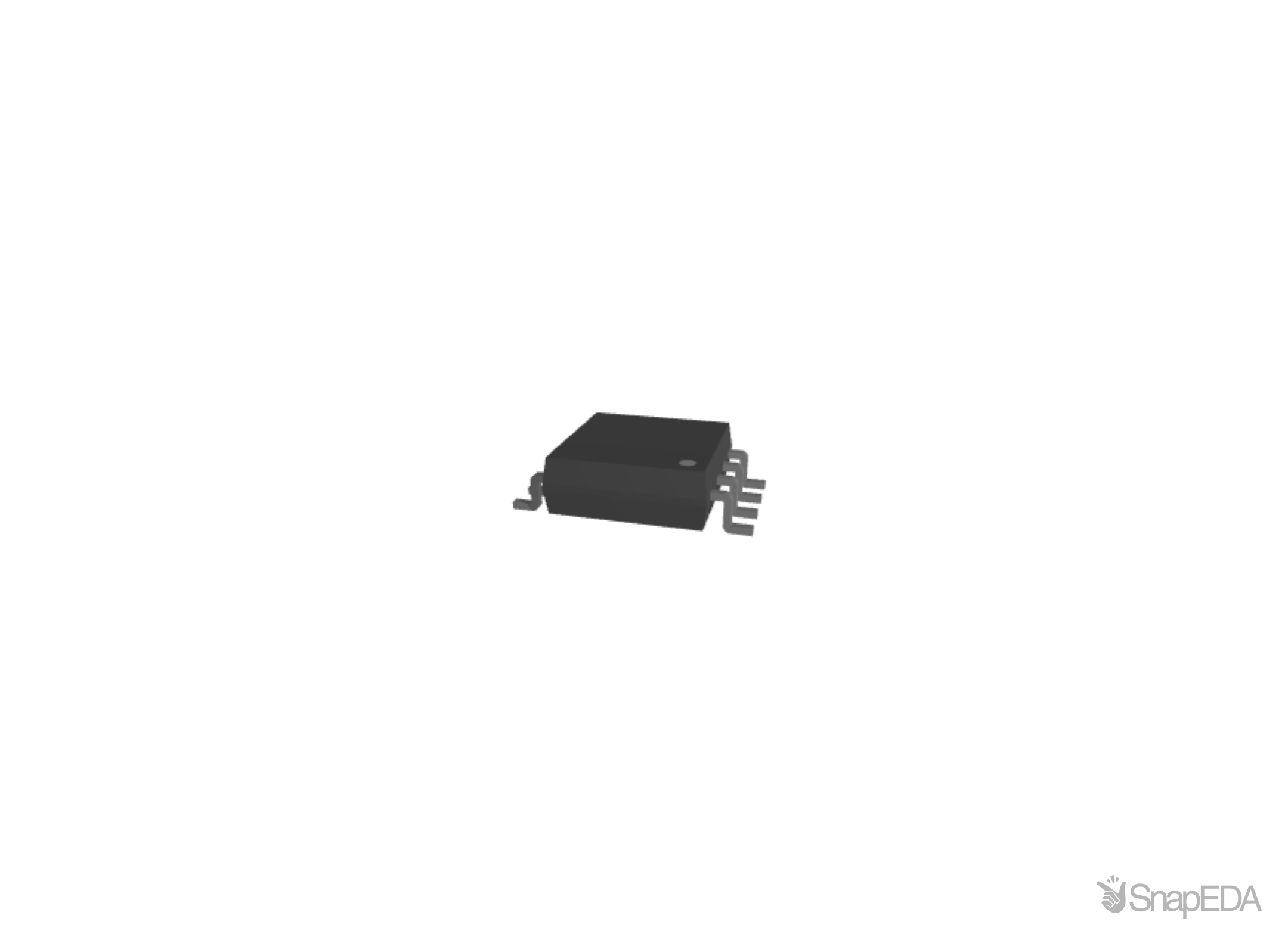

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the S25FL127SABMFI101
| Part Name | S25FL127SABMFI101 |
| Manufacturer | Infineon Technologies |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Automotive Standard | AEC-Q100 |
| Number Of Words | 128M, 32M, 64M |
| Dimensions | 5.28 x 5.28 x 1.91 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Series | S25FL |
| Organisation | 128M x 1 bit, 32M x 4 bit, 64M x 2 bit |
| Minimum Operating Supply Voltage (V) | 2.7 V |
| Number Of Bits Per Word | 1, 2, 4 |
| Cell Type | NOR |
| Width | 5.28 (mm) |
| Length | 5.28 (mm) |
| Memory Size | 128 (Mbit) |
| Package Type | SOIC |
| Interface Type | SPI |
| Minimum Operating Temperature | -40 °C |
| Block Organisation | Asymmetrical, Symmetrical |
| Maximum Random Access Time | 8 (ns) |
| Mounting Type | Surface Mount |
| Height | 1.91 (mm) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
