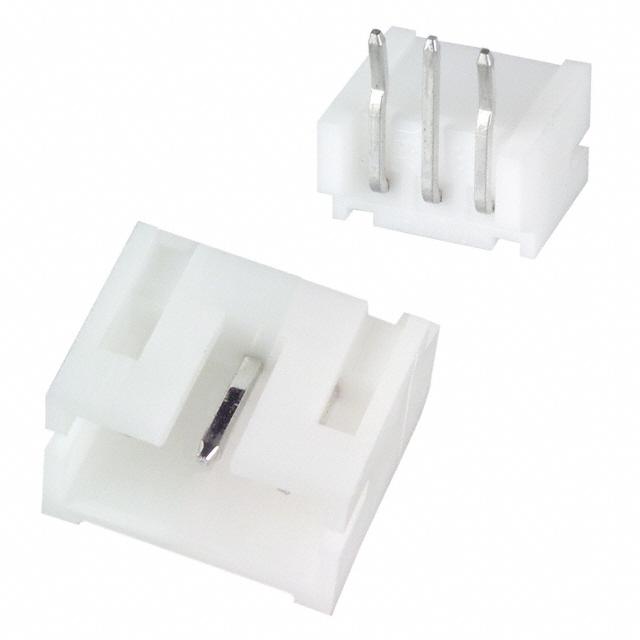

S3B-PH-K-S(LF)(SN)
Connector Header Through Hole, Right Angle 3 position 0.079" (2.00mm)
Availability: In Stock
Package Type: NON STANDARD-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the S3B-PH-K-S(LF)(SN) by JST and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the S3B-PH-K-S(LF)(SN)
| Part Name | S3B-PH-K-S(LF)(SN) |
| Manufacturer | JST Sales |
| RoHS | True |
| Life Cycle Status | New Product |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Shrouded |
| Current Rating (A) | 2.0 (A) |
| Contact Plating | Tin |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 100.0 V |
| Series | PH |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Series Number | S3B |
| Pitch | 2.0 (mm) |
| Number Of Contacts | 3 |
| Contact Material | Brass |
Inventory for the S3B-PH-K-S(LF)(SN) by JST from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Chip One Stop |
160,666
|
|
Visit Site | |
| CoreStaff |
10,440
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| RS UK |
6,001
|
|
Visit Site | |
| TTI Europe |
44,000
|
|
Visit Site |
No issues have been reported for the S3B-PH-K-S(LF)(SN)
If you experienced any issues with the symbol or footprint, please report it.
