S70-332002045R
Surface Mount Contact Pad, flat, circular shape, √ò3.2mm, 0.2mm thick, Tape & Reeled
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the S70-332002045R by Harwin and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

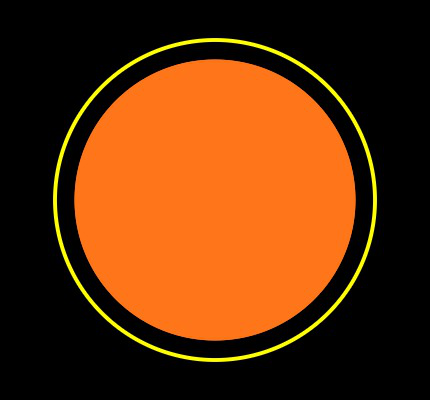

Footprint
No web preview
This Footprint is Available for

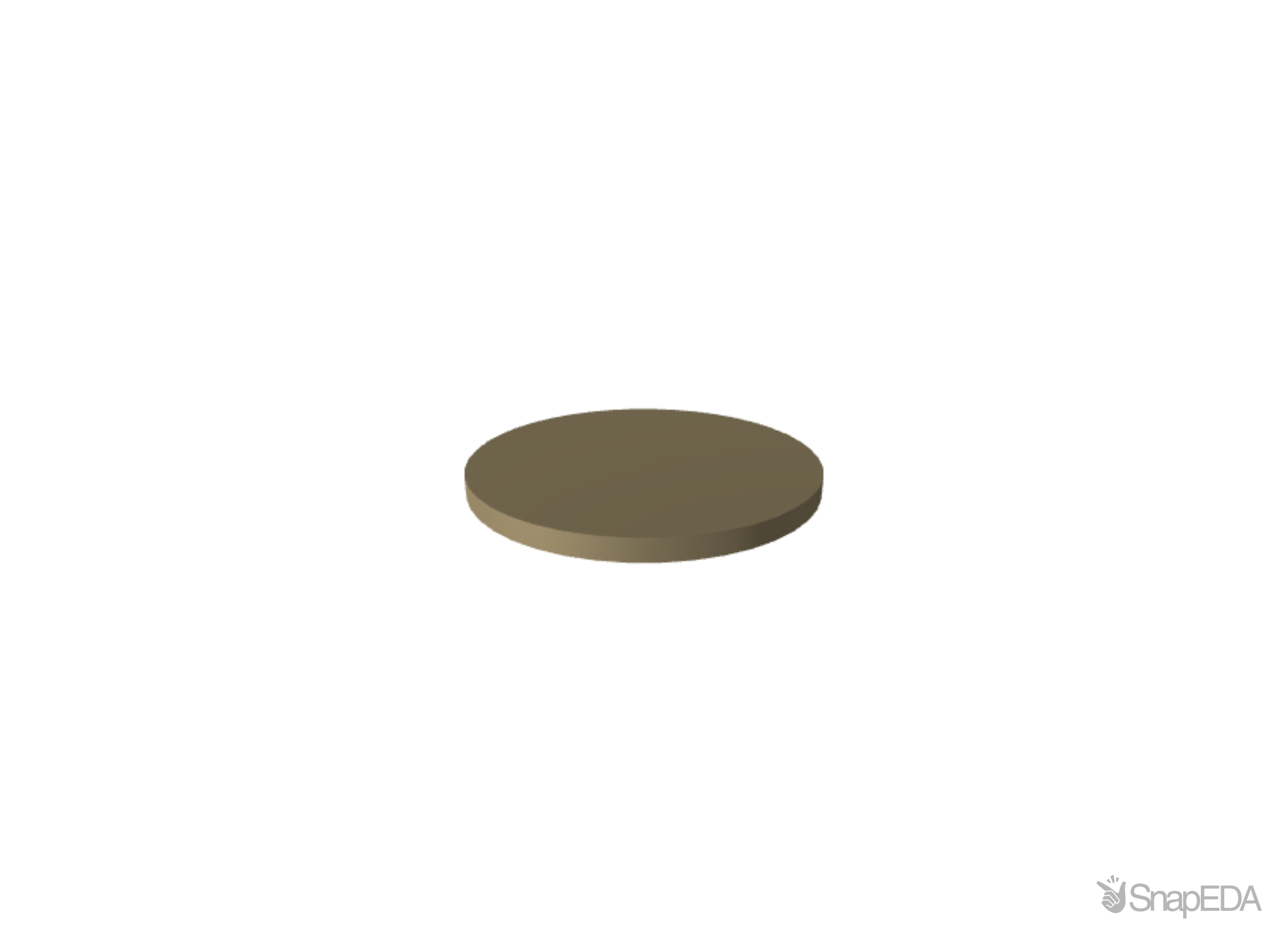

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the S70-332002045R
| Part Name | S70-332002045R |
| Manufacturer | Harwin |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 6 (A) |
| Dimensions | 3.20 x 0.20 (mm) |
| Fixing Method | Surface Mount |
| Series | S70 |
| Material | Beryllium Copper |
| Height | 0.2 (mm) |
| Contact Plating | Gold |
