SA23-12SRWA

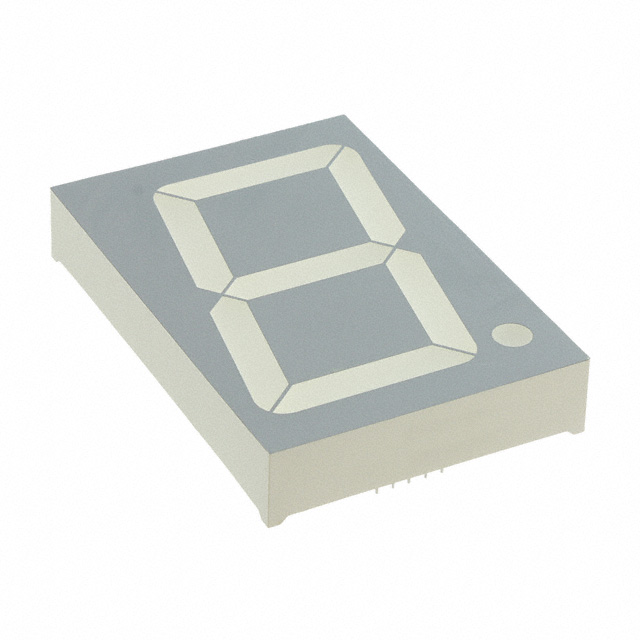

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 7.4V 20mA 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) 10-DIP (2.370", 60.10mm)
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SA23-12SRWA by Kingbright and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SA23-12SRWA
| Part Name | SA23-12SRWA |
| Manufacturer | Kingbright |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dominant Wavelength | 617 nm |
| Number Of Segments | 7 |
| Forward Current (A) | 30 (mA) |
| Common Connection | Anode |
| Forward Voltage (V) | 4 V, 8 V |
| External Depth | 12 (mm) |
| Character Width | 32.2 (mm) |
| Luminous Intensity | 190 mcd |
| Maximum Operating Temperature | +85 (°C) |
| Operating Temperature Range | -40 → +85 (°C) |
| Character Height | 57 (mm) |
| Led Colour S | Red |
| External Dimensions | 70 x 48 x 12 (mm) |
| Display Type | 7-Segment |
| Colour Of Face | Grey |
| Mounting Type | Through Hole |
| Number Of Characters | 1 |
| Power Dissipation | 150 mW, 300 mW |
| Minimum Operating Temperature | -40 (°C) |
| Decimal Orientation | Right Side |
| External Height | 70 (mm) |
| External Width | 48 (mm) |
