SC0676
The Raspberry Pi Compute Module 4 CM4108008 Single Board Computer features a powerful 1.5GHz quad-core ARM Cortex-A72 processor and 8GB of RAM, making it ideal for a wide range of embedded computing applications. With 28 digital I/O lines, GbE Ethernet, and multiple expansion interfaces including I2C, SPI, and UART, this SBC offers extensive connectivity options. It supports various video outputs such as CSI, DPI, DSI, and HDMI, ensuring versatile display capabilities. Operating within a temperature range of -20°C to 75°C, this compact 2.170" x 1.570" board is suitable for both industrial and hobbyist projects.
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SC0676 by Raspberry Pi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

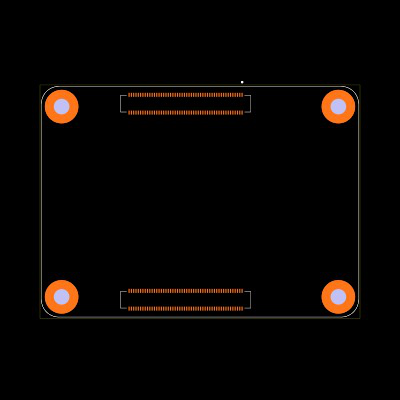

Footprint
No web preview
This Footprint is Available for

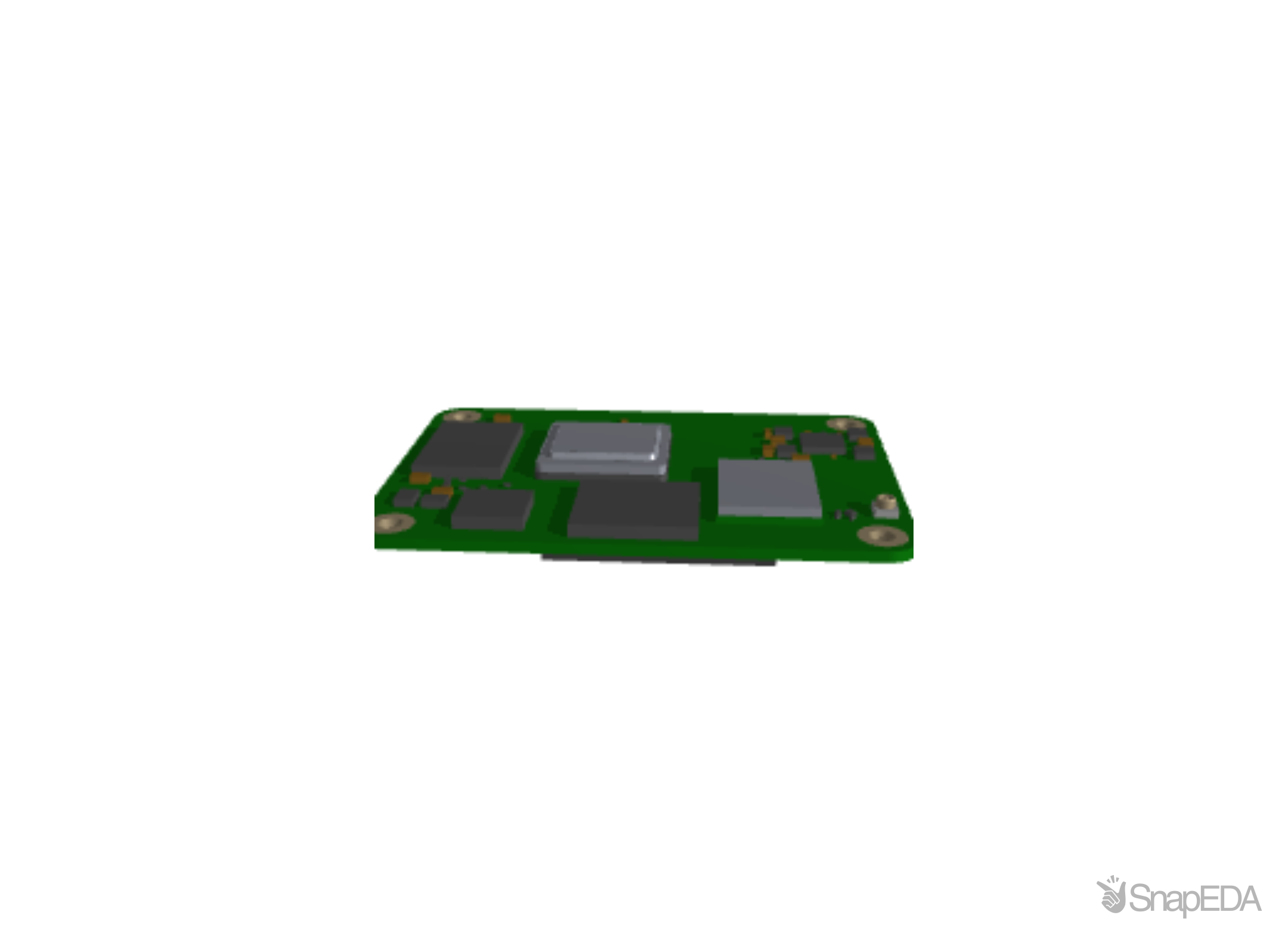

3D Model
