SC0687

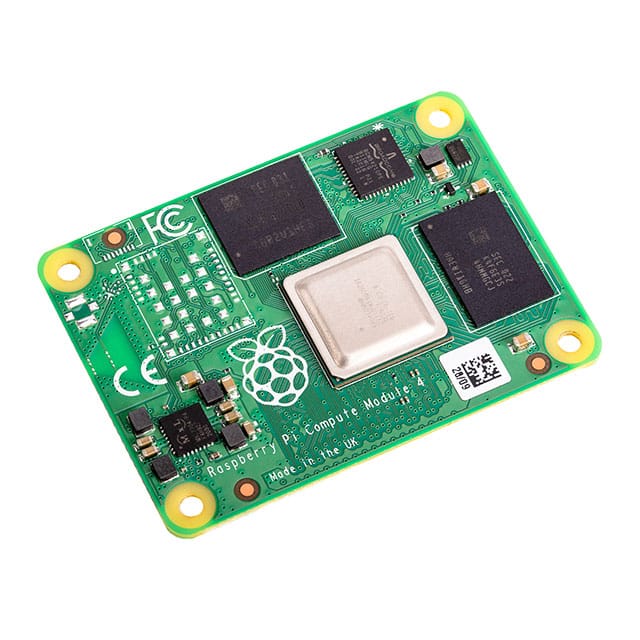

The Raspberry Pi Compute Module 4 CM4008000 single board computer features a powerful 1.5GHz quad-core ARM Cortex-A72 processor and 8GB of RAM, making it ideal for a wide range of embedded computing applications. With 28 digital I/O lines, Gigabit Ethernet, and multiple expansion interfaces including I2C, SPI, and UART, this SBC offers multiple connectivity options. It supports video outputs such as CSI, DPI, DSI, and HDMI, providing flexibility for multimedia projects.
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SC0687 by Raspberry Pi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SC0687
| Part Name | SC0687 |
| Manufacturer | Raspberry Pi |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
