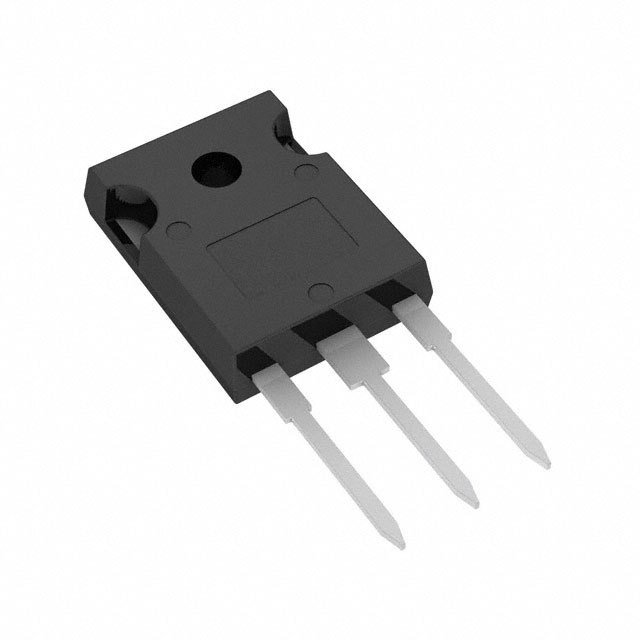

SCT3022ALGC11
N-Channel 650 V 93A (Tc) 339W (Tc) Through Hole TO-247N
Availability: In Stock
Package Type: TO-247
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SCT3022ALGC11 by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

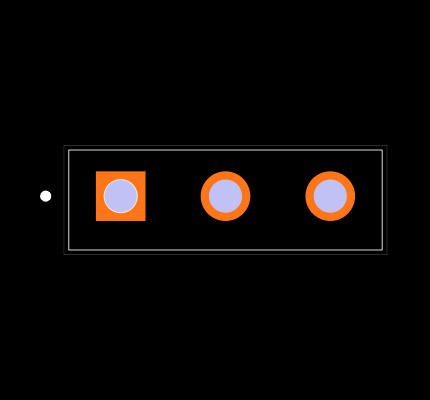

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SCT3022ALGC11
| Part Name | SCT3022ALGC11 |
| Manufacturer | Rohm |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 650 V |
| Width | 5 (mm) |
| Maximum Continuous Drain Current (A) | 93 A |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 262 W |
| Channel Type | N |
| Maximum Gate Source Voltage (V) | 22 V |
| Length | 16 (mm) |
| Transistor Material | SiC |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage (V) | 5.6 (V) |
| Package Type | TO-247N |
| Number Of Elements Per Chip | 1 |
| Pin Count | 3 |
| Minimum Gate Threshold Voltage (V) | 2.7 (V) |
| Typical Gate Charge Vgs | 133 nC @ 18 V |
| Height | 21 (mm) |
| Maximum Operating Temperature | +175 °C |
| Maximum Drain Source Resistance | 29 mΩ |
| Transistor Configuration | Single |
