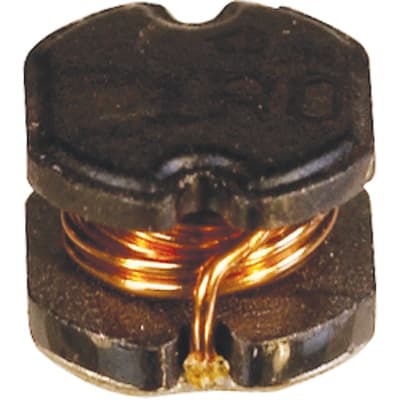

SDR0403-4R7ML
Inductor, Filter, Ind 4.7uH, Tol 20%, Cur 1.7A, SMT, Case 0403, DCR 0.094 Ohms | Bourns SDR0403-4R7ML
Availability: In Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SDR0403-4R7ML by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SDR0403-4R7ML
| Part Name | SDR0403-4R7ML |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 4.5 (mm) |
| Inductor Construction | Ferrite Core |
| Dimensions | 4.5 x 4 x 3.2 (mm) |
| Tolerance | ±20 (%) |
| Maximum Dc Resistance | 94 (mΩ) |
| Shielded | No |
| Series | SDR0403 |
| Length | 4.5 (mm) |
| Height | 3.2 (mm) |
| Maximum Dc Current (A) | 1.7 (A) |
| Depth | 4 (mm) |
| Inductance | 4.7 μH |
| Core Material | Ferrite DR |
| Minimum Quality Factor | 28 |
| Maximum Self Resonant Frequency | 50 (MHz) |
| Maximum Operating Temperature | +125 (°C) |
| Minimum Operating Temperature | -40 (°C) |
| Package/Case | 0403 |
