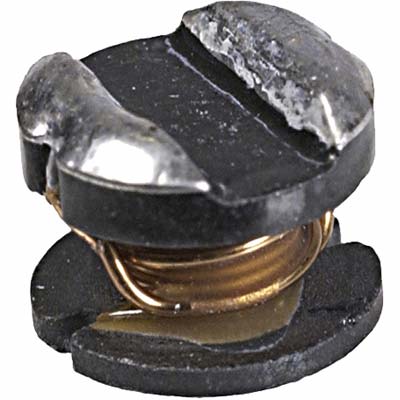

SDR0604-2R2ML
Inductor, High Pwr, 2.2uH, Case 0604, SMT, 20%, 2.8A, 0.06 Ohms DCR, 0.189In.H | Bourns SDR0604-2R2ML
Availability: In Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SDR0604-2R2ML by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SDR0604-2R2ML
| Part Name | SDR0604-2R2ML |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 5.8 (mm) |
| Inductor Construction | Ferrite Core |
| Dimensions | 5.8 x 5.8 x 4.8 (mm) |
| Tolerance | ±20 (%) |
| Inductance | 2.2 μH |
| Shielded | No |
| Series | SDR0604 |
| Package Case | 0604 |
| Depth | 5.8 (mm) |
| Height | 4.8 (mm) |
| Maximum Dc Current (A) | 2.8 (A) |
| Length | 5.8 (mm) |
| Core Material | Ferrite DR |
| Minimum Quality Factor | 33 |
| Maximum Dc Resistance | 60 (mΩ) |
| Maximum Self Resonant Frequency | 79 (MHz) |
| Maximum Operating Temperature | +125 (°C) |
| Minimum Operating Temperature | -40 (°C) |
Inventory for the SDR0604-2R2ML by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
196
|
|
Visit Site | |
| Newark |
196
|
|
Visit Site | |
| RS UK |
2,700
|
400 x $0.20
|
Visit Site | |
| TME |
|
|
Visit Site | |
| TTI Americas |
|
400 x $0.19
|
Visit Site | |
| element14 Singapore |
196
|
|
Visit Site |
No issues have been reported for the SDR0604-2R2ML
