SDR1806-330ML
Inductor, Filter, Ind 33uH, Tol 20%, Cur 3A, SMT, Case 1806, DCR 68 Milliohms | Bourns SDR1806-330ML
Availability: Out of Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SDR1806-330ML by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

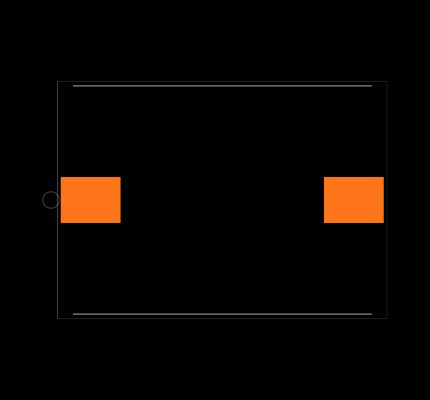

Footprint
No web preview
This Footprint is Available for

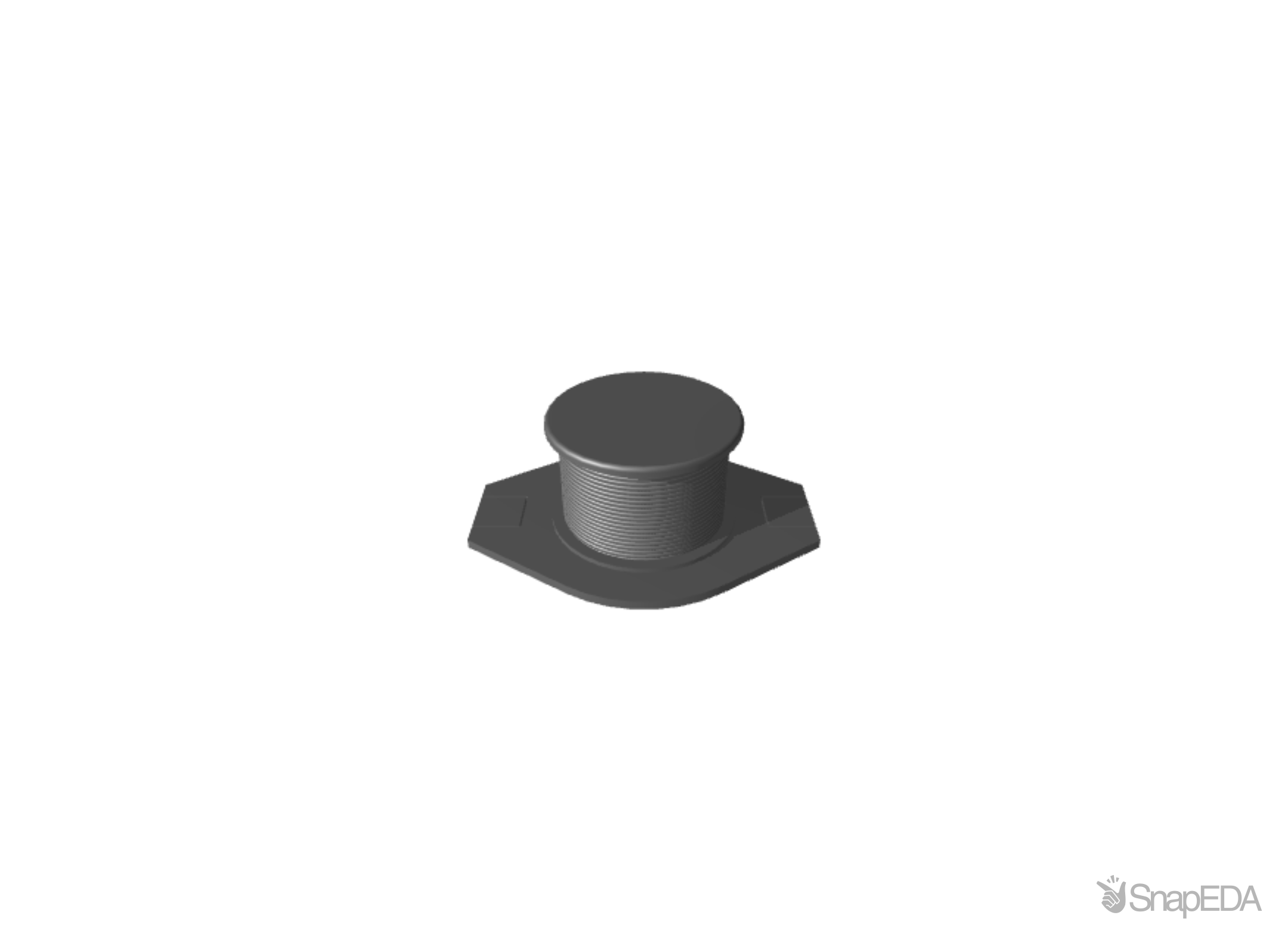

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SDR1806-330ML
| Part Name | SDR1806-330ML |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 68 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 18.3 x 14 x 6.6 (mm) |
| Tolerance | ±20 (%) |
| Inductance | 33 μH |
| Shielded | No |
| Series | SDR1806 |
| Package Case | 1806 |
| Length | 18.3 (mm) |
| Height | 6.6 (mm) |
| Maximum Dc Current (A) | 3 (A) |
| Depth | 14 (mm) |
| Core Material | Ferrite DR |
| Minimum Quality Factor | 24 |
| Maximum Self Resonant Frequency | 11 (MHz) |
| Maximum Operating Temperature | +125 (°C) |
| Minimum Operating Temperature | -40 (°C) |
