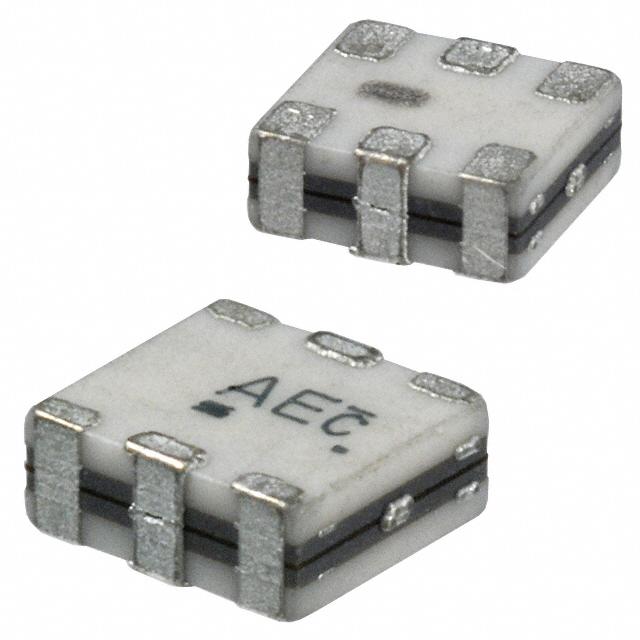

SFECF10M7EA00-R0
10.7MHz Center FM Ceramic Filter 330 kHz 330Ohm 1412 (3531 Metric), 6 PC Pad
Availability: Out of Stock
Package Type: 1412
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SFECF10M7EA00-R0 by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SFECF10M7EA00-R0
| Part Name | SFECF10M7EA00-R0 |
| Manufacturer | Murata Electronics |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=SFECF10M7EA00-R0 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.45 x 3.1 x 1.3 (mm) |
| Mounting Type | Surface Mount |
| Series | SFECF10M7 |
| Termination Style | Flat Contact |
| Depth | 3.1 (mm) |
| Height | 1.3 (mm) |
| Length | 3.45 (mm) |
| Minimum Operating Temperature | -20 (°C) |
| Operating Frequency | 10.7 (MHz) |
| Maximum Operating Temperature | +80 (°C) |
No issues have been reported for the SFECF10M7EA00-R0
