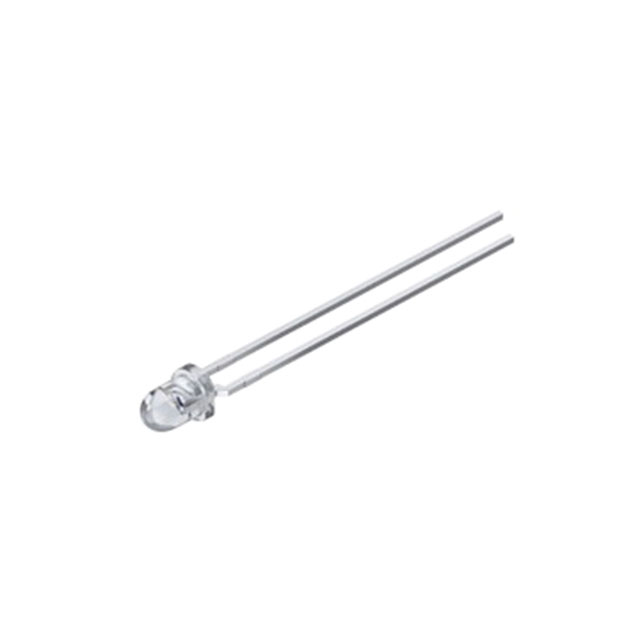

SFH 4350
Infrared (IR) Emitter 860nm 1.5V 100mA 200mW/sr @ 100mA 26° Radial
Availability: Out of Stock
Package Type: RADIAL
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SFH 4350 by Osram and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

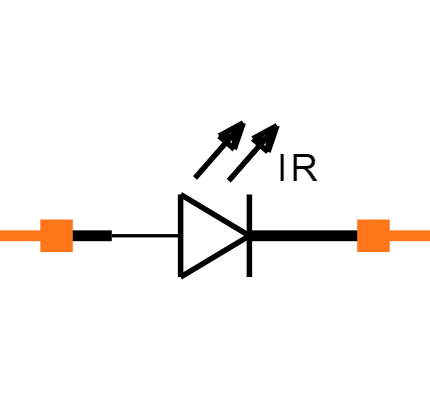

Symbol
No web preview
This Symbol is Available for

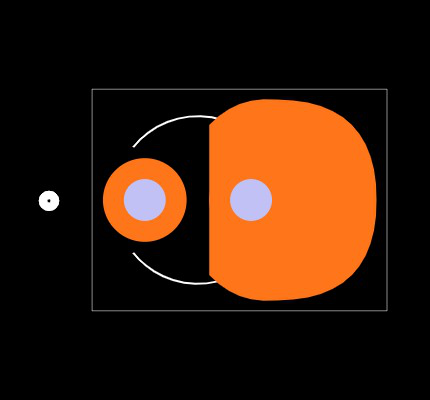

Footprint
No web preview
This Footprint is Available for

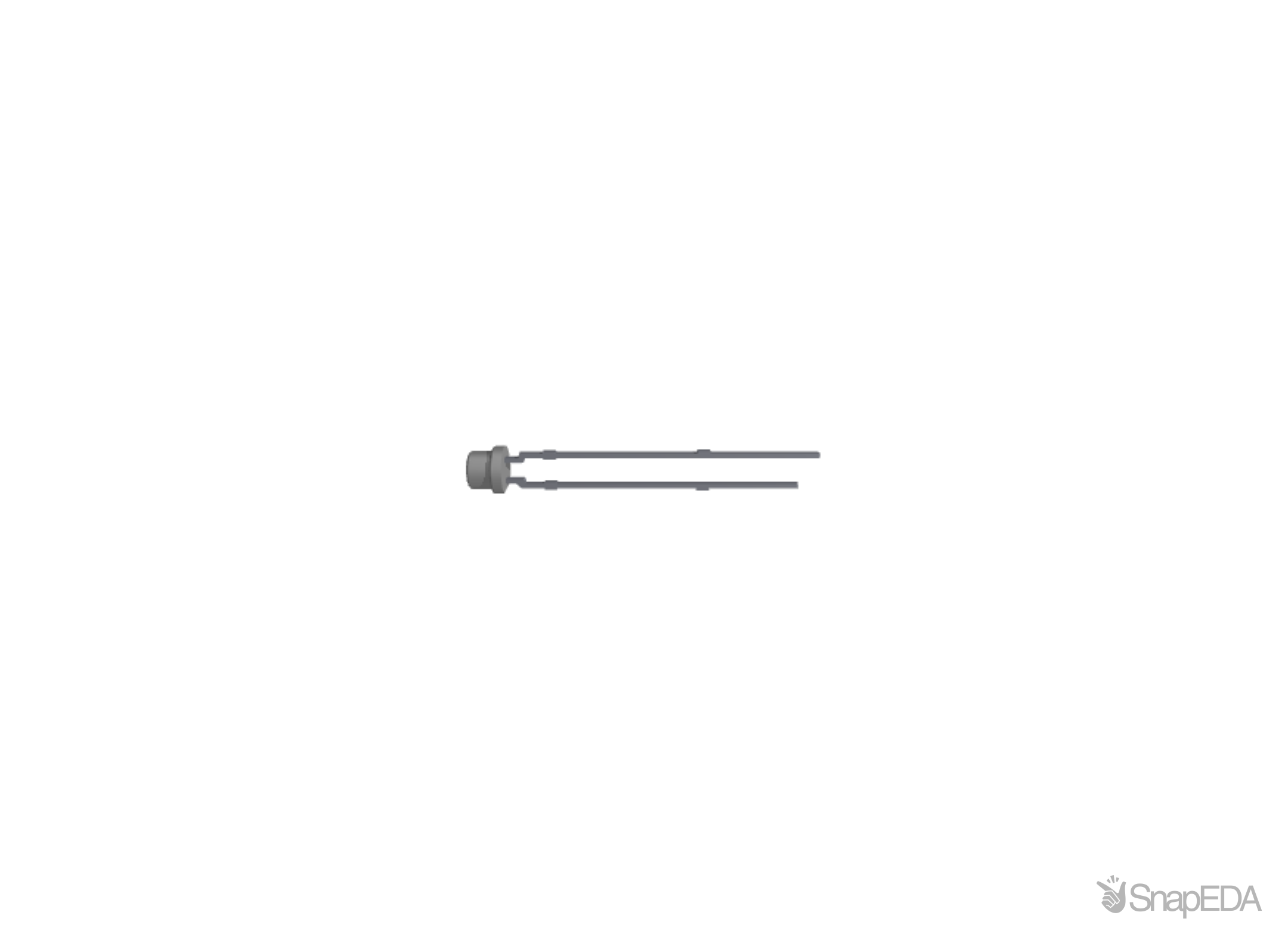

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SFH 4350
| Part Name | SFH 4350 |
| Manufacturer | OSRAM Opto |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3 x 5.2 (mm) |
| Mounting Type | Through Hole |
| Radiant Flux | 70 (mW) |
| Angle Of Half Intensity | ±13 (°) |
| Radiant Intensity | 200 (mW/sr) |
| Package Type | 3mm (T-1) |
| Number Of Leds | 1 |
| Lens Shape | Round |
| Number Of Pins | 2 |
| Peak Wavelength | 860 (nm) |
No issues have been reported for the SFH 4350
