SFH 7060
Oximeter/Heart Rate Sensor Current Output
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SFH 7060 by OSRAM and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

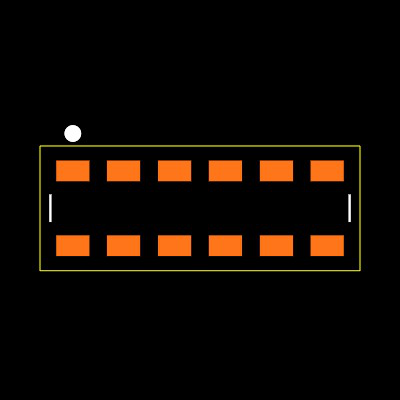

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SFH 7060
| Part Name | SFH 7060 |
| Manufacturer | OSRAM Opto |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 7.2 x 2.5 x 0.9 (mm) |
| Mounting Type | Surface Mount |
| Operating Temperature Range | -40 → +85 (°C) |
| Series | BIOFY Sensor |
| Typical Rise Time | 16 (ns) |
| Height | 0.9 (mm) |
| Width | 2.5 (mm) |
| Length | 7.2 (mm) |
| Number Of Pins | 12 |
| Minimum Operating Temperature | -40 (°C) |
| Package Type | Chip |
| Maximum Operating Temperature | +85 (°C) |
| Typical Fall Time | 16 (ns) |
