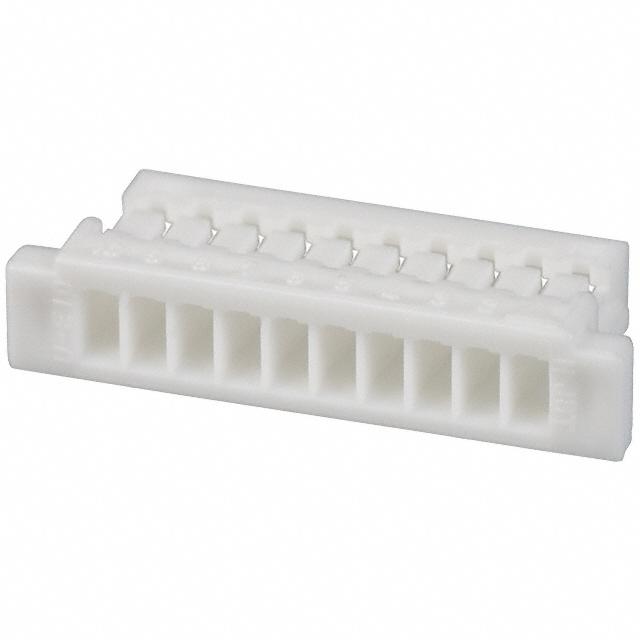

SHR-10V-S-B
10 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SHR-10V-S-B by JST and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SHR-10V-S-B
| Part Name | SHR-10V-S-B |
| Manufacturer | JST Sales |
| RoHS | True |
| Life Cycle Status | New at Mouser |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Wire Size | 32 → 28 AWG |
| Series | SH |
| Colour | White |
| Connector Type | Receptacle |
| Body Material | PBT |
| Length | 13 (mm) |
| Maximum Wire Size | 28 (AWG) |
| Distrelec Product Id | 30409599 |
| Number Of Contacts | 10 |
| Minimum Wire Size | 32 (AWG) |
