SHT40I-AD1B-R3
Industrial Grade Digital Relative Humidity Temperature Sensor, ±2% / max 4% RH, ±0.2 °C
Availability: In Stock
Package Type: DFN-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SHT40I-AD1B-R3 by Sensirion and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

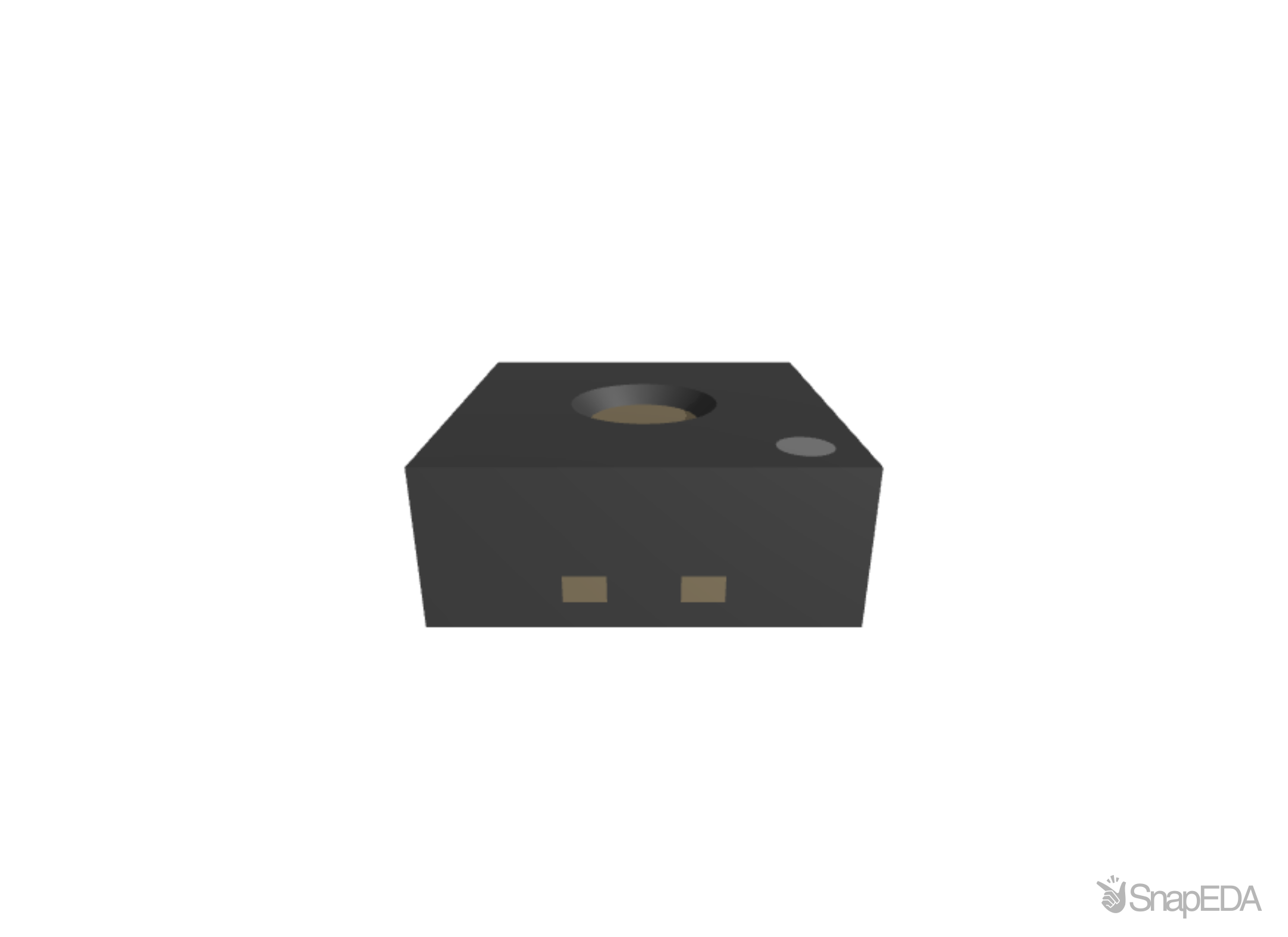

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SHT40I-AD1B-R3
| Part Name | SHT40I-AD1B-R3 |
| Manufacturer | Sensirion |
| Average Current (A) | 18 µA |
| Operating Range | 0…100 %RH, -40…125 °C |
| Product Link | https://sensirion.com/products/catalog/SHT40I// |
| Packaging Type | DFN-4 |
| T Accuracy | ±0.2 (typ.)°C @0-65 °C |
| Supply Voltage (V) | 2.3 V to 5.5 V |
| Series | SHT4x |
| RH accuracy | ±2 (typ.) %RH @20-80 %RH |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
