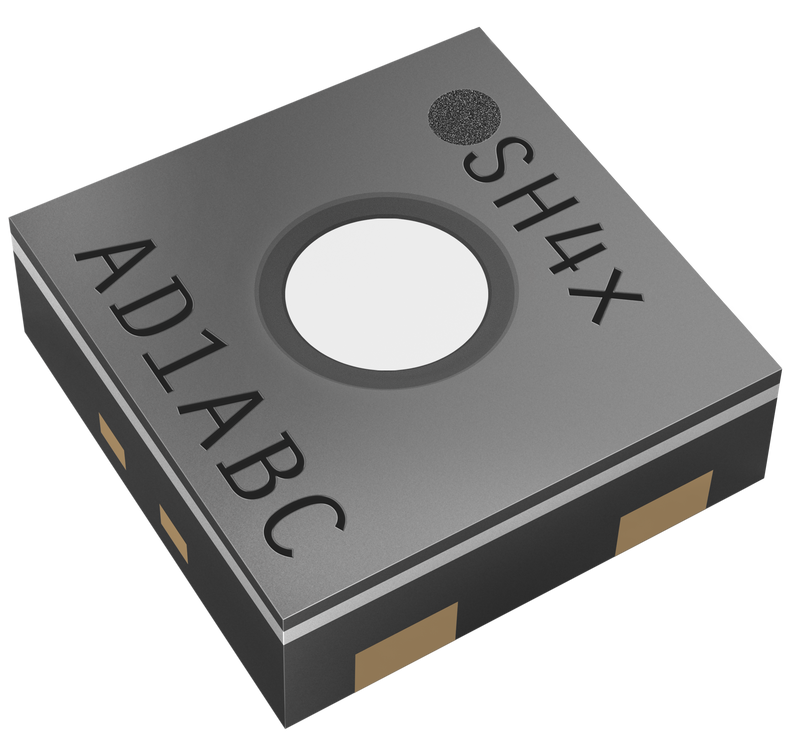

SHT41-AD1F-R2
Digital Relative Humidity Temperature Sensor, ±1.8 / max 2.5 %RH, ±0.2 °C, Ultra-Low-Power, with filtermembrane
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SHT41-AD1F-R2 by Sensirion and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

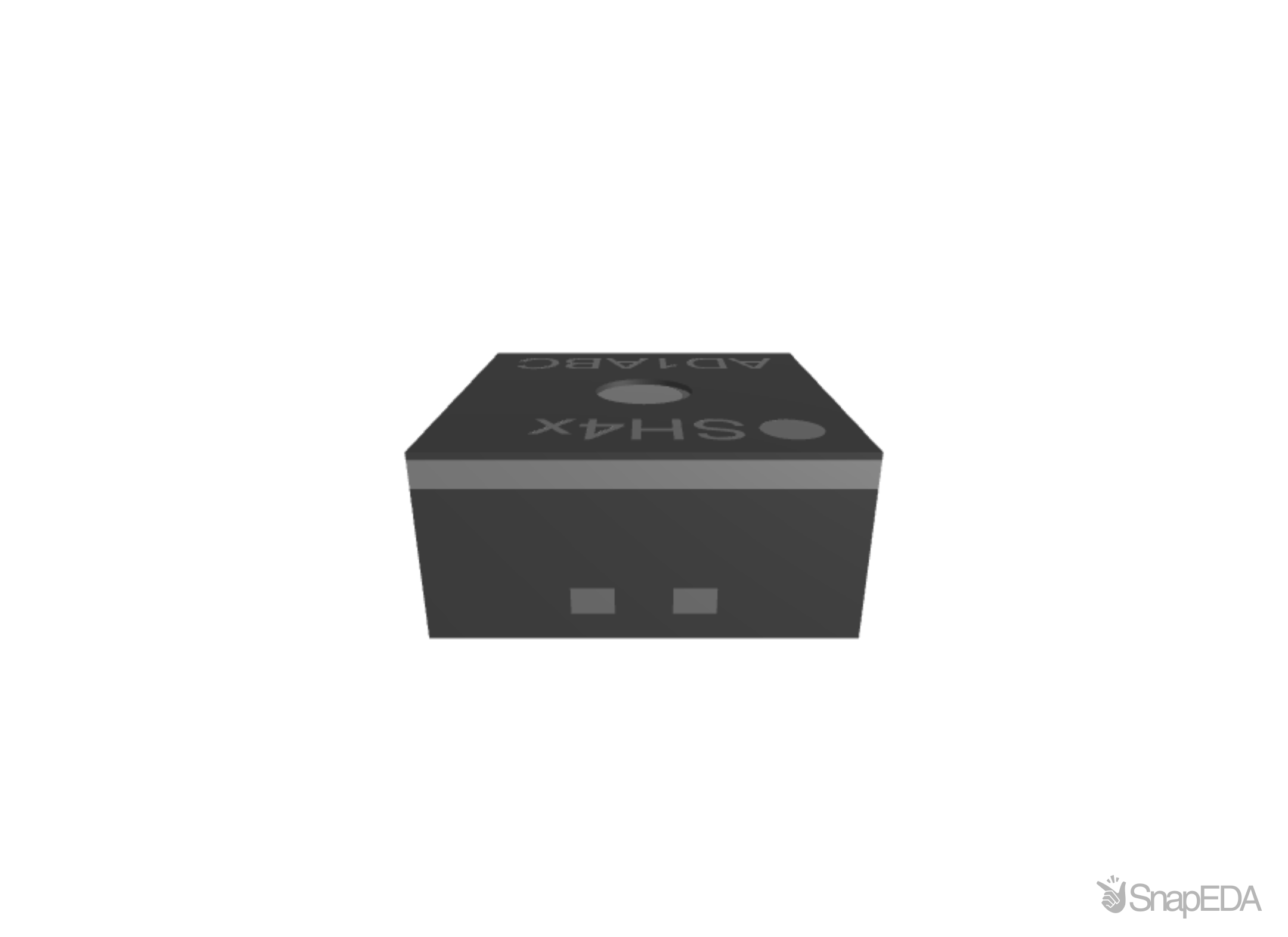

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SHT41-AD1F-R2
| Part Name | SHT41-AD1F-R2 |
| Manufacturer | Sensirion |
| Series | SHT4x |
| T Accuracy | ±0.2 (typ.) °C @0-65°C |
| Operating Range | 0…100 %RH, -40…125 °C |
| Average Current (A) | 0.4 µA |
| Supply Voltage (V) | 1.08 V to 3.6 V |
| Product Link | https://www.sensirion.com/en/environmental-sensors/humidity-sensors/humidity-sensor-sht4x/ |
| RH accuracy | ±1.8 (typ.) %RH @30-70 %RH |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the SHT41-AD1F-R2 by Sensirion from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Braemac Americas |
|
1 x $1.75
|
Visit Site | |
| Farnell UK |
964
|
|
Visit Site | |
| Newark |
496
|
|
Visit Site | |
| Rutronik |
|
2,500 x $3.17
|
Visit Site | |
| SOS electronic |
2,030
|
|
Visit Site | |
| element14 Singapore |
964
|
|
Visit Site |
No issues have been reported for the SHT41-AD1F-R2
If you experienced any issues with the symbol or footprint, please report it.
