SJ2-25923B-SMT-TR

Name: SJ2-25923B-SMT-TR
Brand: Same Sky

SnapVerified

3 conductors, 2.5mm, SMT Audio Jack w/ Tip Switch

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the SJ2-25923B-SMT-TR by Same Sky and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Free samples

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

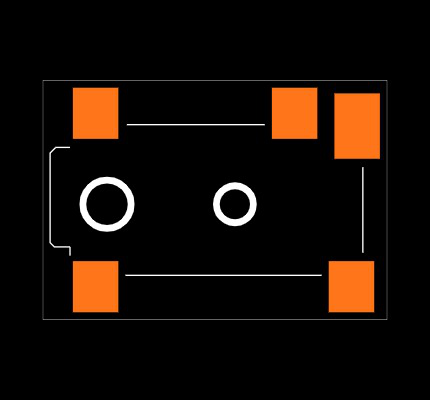

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the SJ2-25923B-SMT-TR

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the SJ2-25923B-SMT-TR

Part Name	SJ2-25923B-SMT-TR
Manufacturer	Same Sky
Mounting Style	Surface Mount
Shielding	No
Orientation	Horizontal
RoHS and REACH Link	https://www.cuidevices.com/product/resource/material-compliance/sj2-25923b-smt-tr
Color	Black
Series	SJ2-2592X-SMT
Number of Conductors	3
Connector Type	Jack
Length (mm)	11
Number of Ports	1
Voltage Rating (Vdc) (V)	12
Width (mm)	5.3
Dimensions LxWxH (mm)	11 x 5.3 x 3.1
Internal Switch(es)	1
Height (mm)	3.1
Audio Standard (mm)	2.5
Current Rating (A)	1
Dimensions LxWxH (in)	0.43 x 0.21 x 0.12
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

We could not find inventory or pricing across major distributors for the SJ2-25923B-SMT-TR by Same Sky.
