SK310B
3A, 100V, Planar Schottky
Availability: In Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SK310B by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

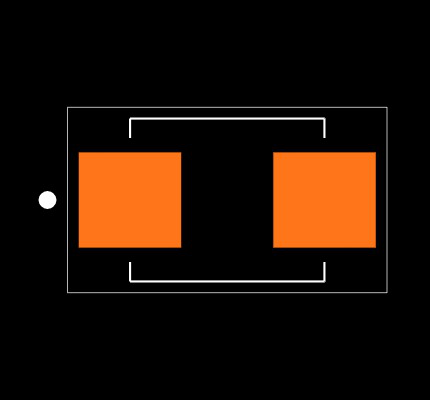

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the SK310B
| Part Name | SK310B |
| Manufacturer | Taiwan Semiconductor |
| Maximum DC Reverse Current (A) | 0.0001 |
| Family | Schottky |
| Case Package | DO-214AA (SMB) |
| Peak Forward Surge Current (A) | 70.0 |
| Maximum Average Forward Rectified Current (A) | 3.0 |
| Maximum Instantaneous Forward Voltage (V) | 0.85 |
| Maximum Repetitive Peak Reverse Voltage (V) | 100.0 |
| Technology | Standard |
| Maximum Operating Junction Temperature | 150.0 |
| RoHS | True |
| AEC-Q compliant | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Rectifier Type | Schottky Rectifier |
| Maximum Continuous Forward Current (A) | 3 (A) |
| Diode Technology | Schottky |
| Package Type | DO-214AA (SMB) |
| Peak Reverse Repetitive Voltage (V) | 100 (V) |
| Diode Type | Schottky |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Non Repetitive Forward Surge Current (A) | 70 (A) |
| Number Of Elements Per Chip | 1 |
