SKRAAKE010
Tactile Switch; Mounting : Surface mount; Operating direction: Vertical; Operating force: 3.92 N; Travel: 0.35 mm; Dimensions (WxDxH) : 6.2x6.2x3.4 mm
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SKRAAKE010 by ALPS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

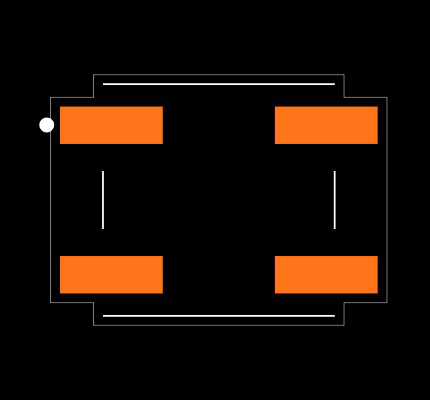

- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

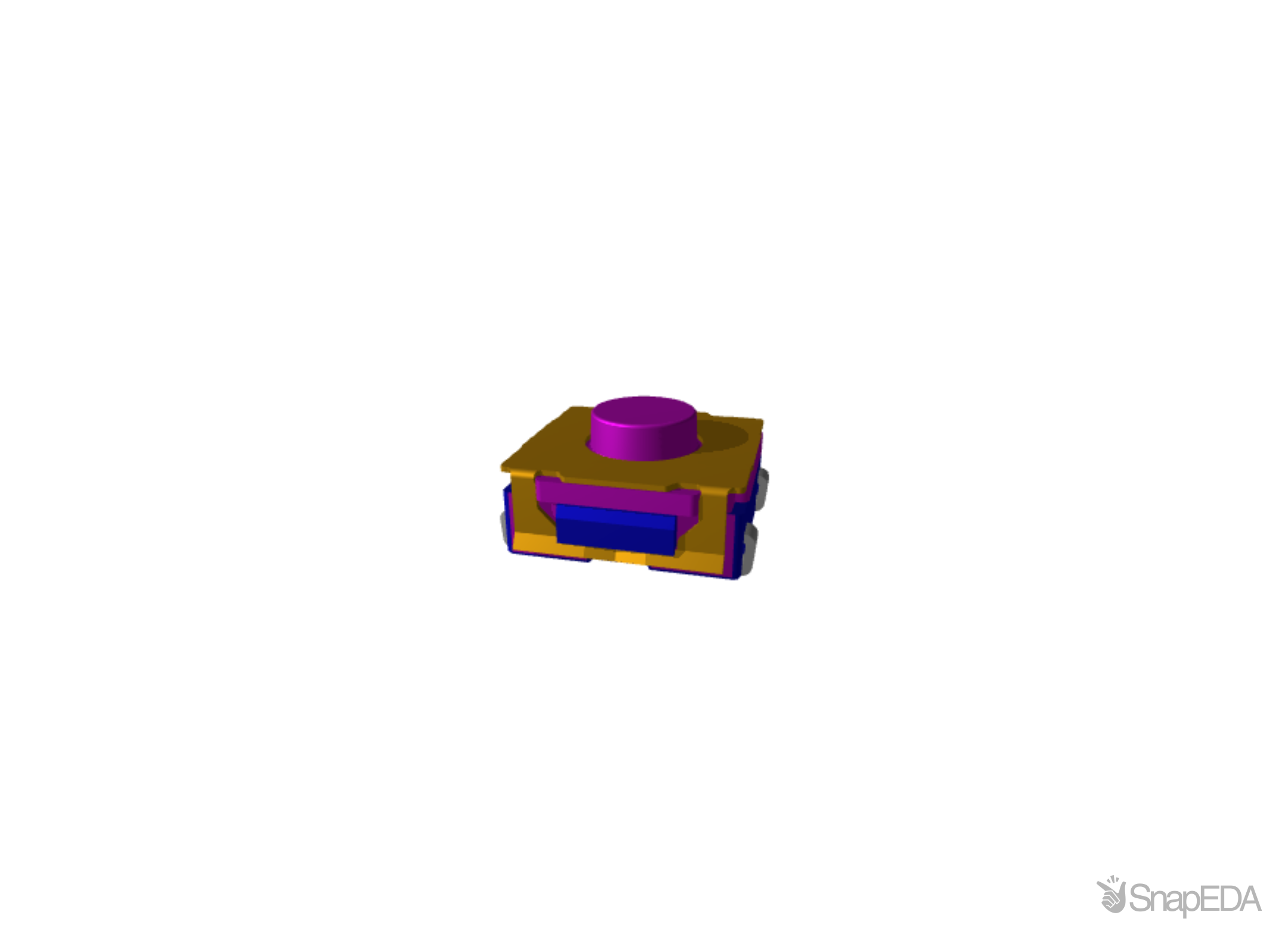

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SKRAAKE010
| Part Name | SKRAAKE010 |
| Manufacturer | ALPS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Operating Force | 2.45 N |
| Actuator Colour | White |
| Dimensions | 6.2 x 6.2 x 3.4 (mm) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 12 (V dc) |
| Contact Current Rating (A) | 50 mA @ 12 V dc |
| Minimum Operating Temperature | -30 (°C) |
| Contact Configuration | SPST |
| Operating Temperature Range | -30 → +85 (°C) |
| Width | 6.2 (mm) |
| Length | 6.2 (mm) |
| Actuator Type | Stem |
| Actuator Length | 3.4 (mm) |
| Mechanical Life | 100000 (Cycles) |
| Height | 3.4 (mm) |
| Maximum Operating Temperature | +85 (°C) |
| Terminal Type | Surface Mount |
| Switch Operation | Momentary |
