SLF12575T-1R2N8R2-PF
Inductor Power Shielded Wirewound 1.2uH 30% 1KHz Ferrite 8.2A 8.3mOhm DCR Blister T/R
Availability: In Stock
Package Type: NON STANDARD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SLF12575T-1R2N8R2-PF by TDK Corporation and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

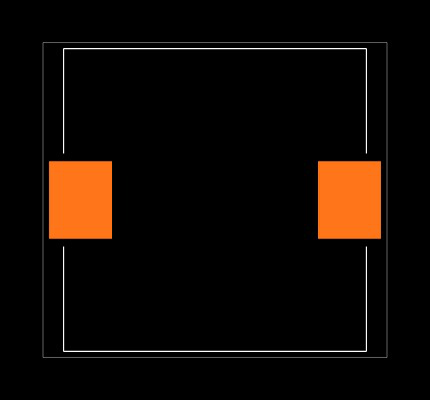

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SLF12575T-1R2N8R2-PF
| Part Name | SLF12575T-1R2N8R2-PF |
| Manufacturer | TDK |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 6.9 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 12.5 x 12.5 x 7.5 (mm) |
| Package Case | 12575 |
| Series | SLF |
| Depth | 7.5 (mm) |
| Height | 6.5 (mm) |
| Maximum Dc Current (A) | 8.2 (A) |
| Length | 12.5 (mm) |
| Core Material | Ferrite |
| Inductance | 1.2 μH |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±30 (%) |
| Minimum Operating Temperature | -40 (°C) |
