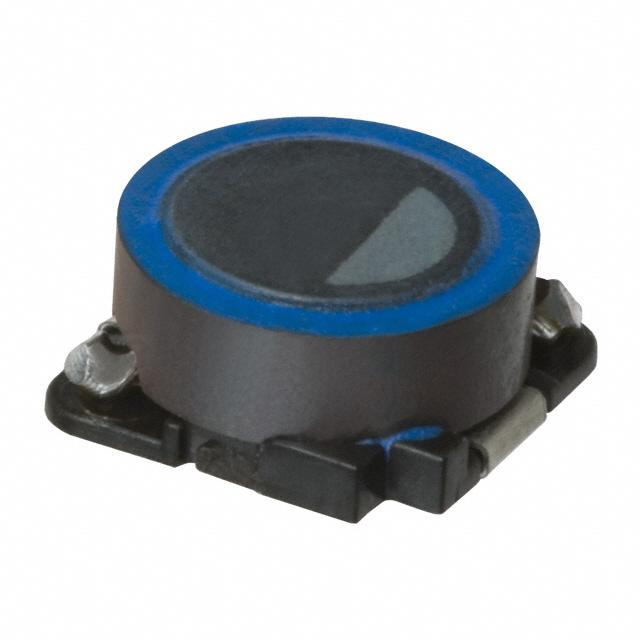

SLF7032T-471MR20-2PF
470 µH Shielded Drum Core, Wirewound Inductor 200 mA 2.46Ohm Max Nonstandard
Availability: In Stock
Package Type: NON STANDARD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SLF7032T-471MR20-2PF by TDK and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

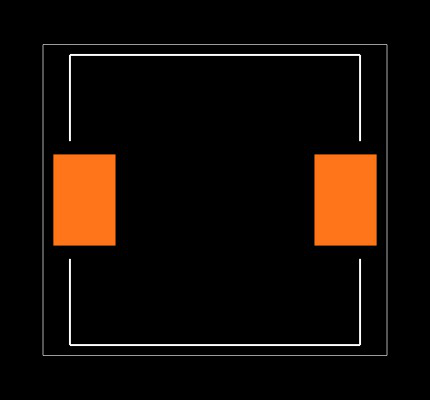

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SLF7032T-471MR20-2PF
| Part Name | SLF7032T-471MR20-2PF |
| Manufacturer | TDK |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 2.05 (Ω) |
| Inductor Construction | Wire-Wound |
| Dimensions | 7 x 7 x 3.2 (mm) |
| Tolerance | ±20 (%) |
| Shielded | Yes |
| Series | SLF |
| Length | 7 (mm) |
| Height | 3.2 (mm) |
| Maximum Dc Current (A) | 200 (mA) |
| Depth | 7 (mm) |
| Inductance | 470 μH |
| Maximum Operating Temperature | +85 (°C) |
| Minimum Operating Temperature | -20 (°C) |
| Package/Case | 7032 |
