SM03B-LBTAKS-TD-N2T-K-TB(HF)
Connector Header Through Hole, Right Angle 3 (1 + 2 Power) position 0.039" (1.00mm)
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SM03B-LBTAKS-TD-N2T-K-TB(HF) by JST and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

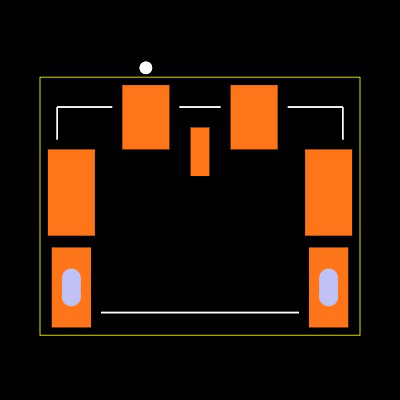

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SM03B-LBTAKS-TD-N2T-K-TB(HF)
| Part Name | SM03B-LBTAKS-TD-N2T-K-TB(HF) |
| Manufacturer | JST Commercial |
| RoHS | True |
| Life Cycle Status | New at Mouser |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the SM03B-LBTAKS-TD-N2T-K-TB(HF) by JST from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
1,500 x $0.40
|
Visit Site | |
| Chip One Stop |
28
|
5 x $0.82
|
Visit Site |
No issues have been reported for the SM03B-LBTAKS-TD-N2T-K-TB(HF)
If you experienced any issues with the symbol or footprint, please report it.
