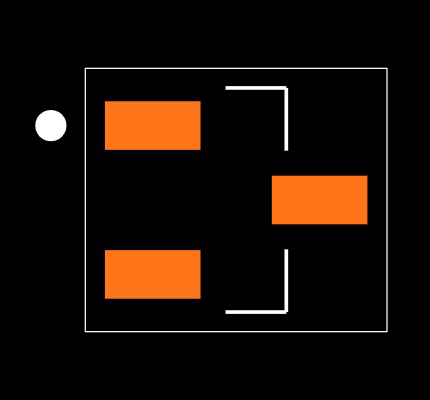

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
SM05.TCT
9.8V Clamp 17A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3
Availability: Out of Stock
Package Type: SOT-23
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SM05.TCT by Semtech and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint

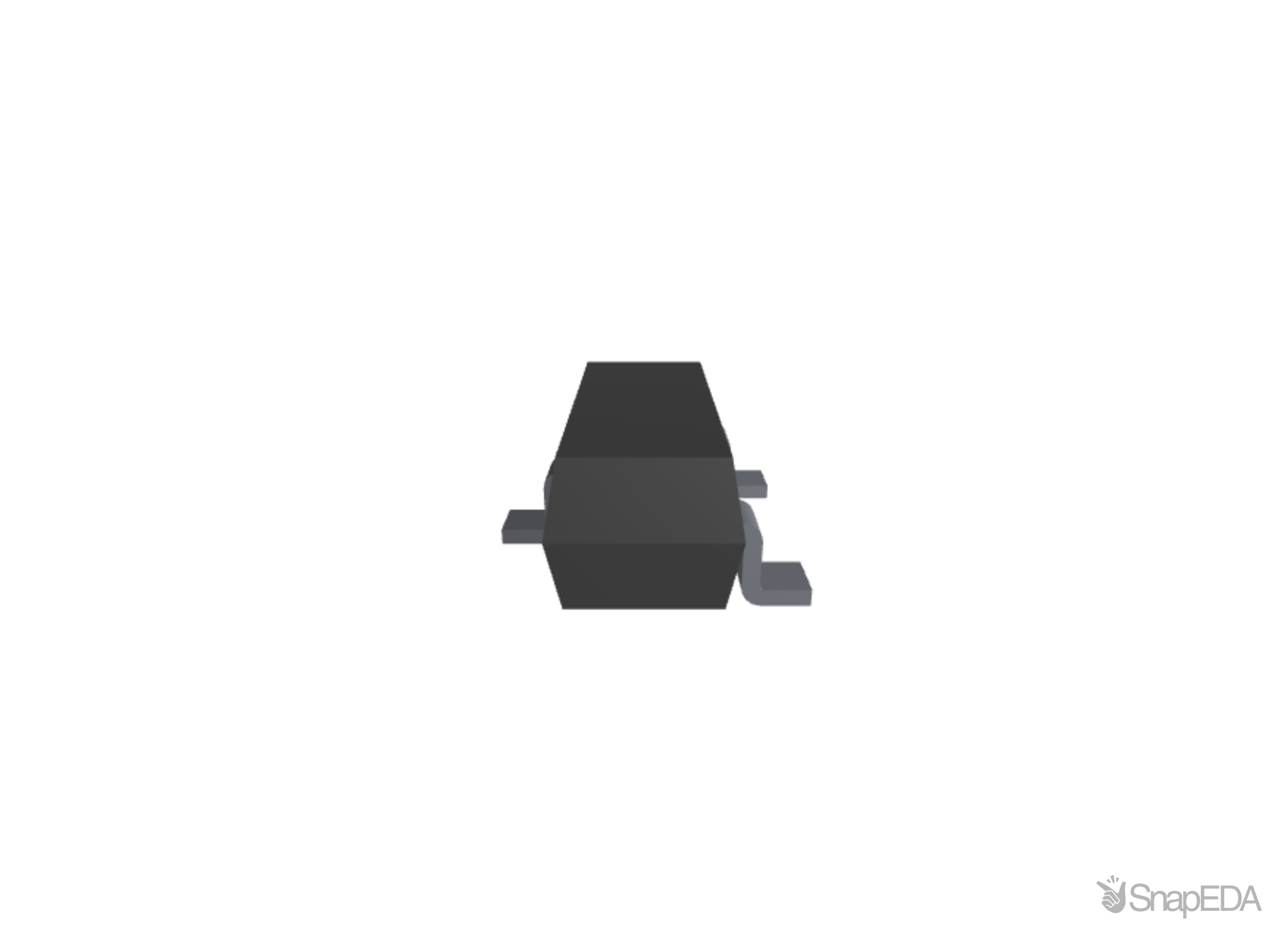

- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SM05.TCT
| Part Name | SM05.TCT |
| Manufacturer | Semtech |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Peak Pulse Current (A) | 17 (A) |
| Maximum Reverse Stand-Off Voltage (V) | 5 (V) |
| Dimensions | 2.9 x 1.3 x 0.95 (mm) |
| Minimum Breakdown Voltage (V) | 6 (V) |
| Direction Type | Uni-Directional |
| Diode Configuration | Common Anode |
| Maximum Reverse Leakage Current (A) | 20 (µA) |
| Esd Protection | Yes |
| Maximum Clamping Voltage (V) | 9.8 (V) |
| Width | 1.3 (mm) |
| Length | 2.9 (mm) |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Height | 0.95 (mm) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 300 (W) |
| Test Current (A) | 1 (mA) |
