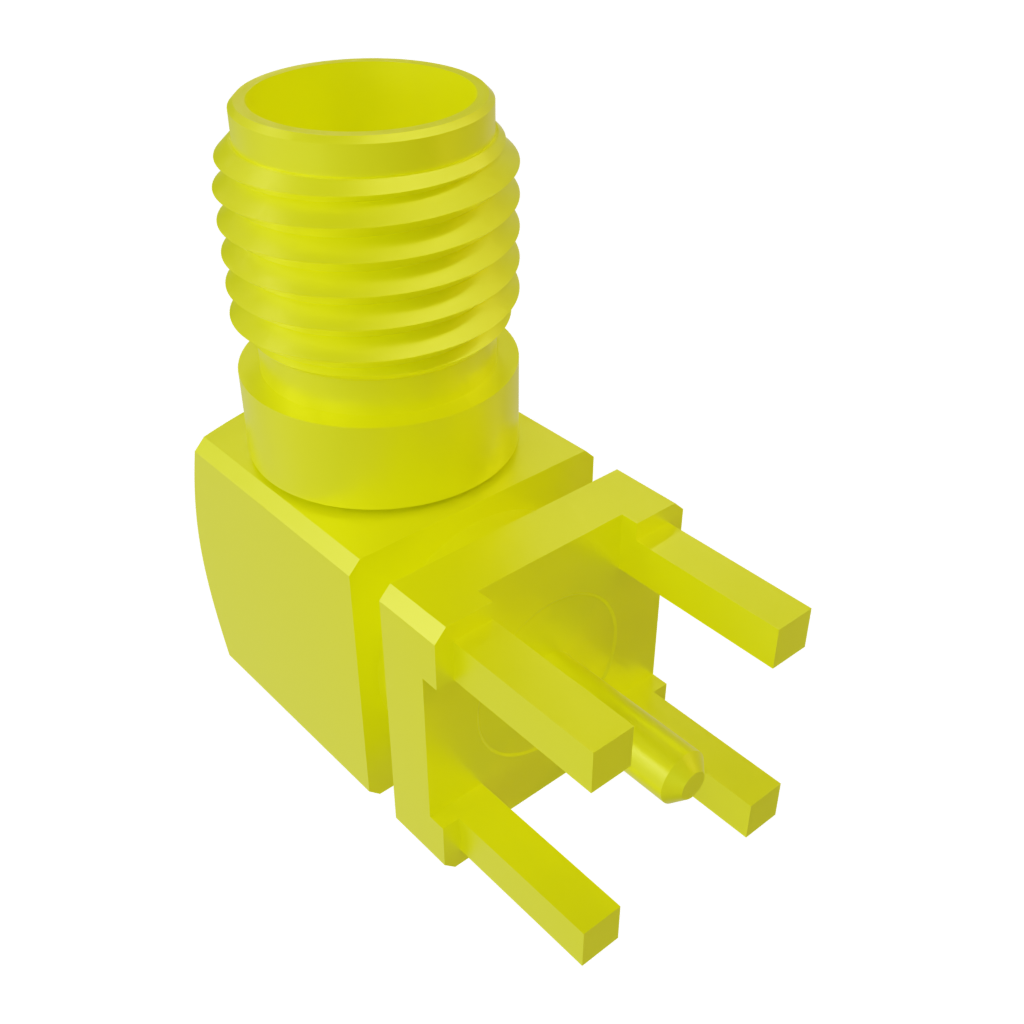

SMA-J-P-H-RA-TH1
SnapVerified
SMA Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
Availability: In Stock
Country of Origin: Taiwan
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the SMA-J-P-H-RA-TH1 by Samtec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the SMA-J-P-H-RA-TH1
| Part Name | SMA-J-P-H-RA-TH1 |
| Manufacturer | Samtec |
| HTS Number | 8536.69 |
| Packaging | Tray |
| Series | SMA |
| Country of Origin | Taiwan |
| ECCN Category | EAR99 |
| RoHS | True |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mating Type | Threaded |
| Mounting Type | PCB Mount |
| Gender | Female |
| Series | SMA |
| Body Orientation | Right Angle |
| Bulkhead | No |
| Coaxial Connector Type | SMA Connector |
| Minimum Operating Temperature | -65 (°C) |
| Termination Method | Solder |
| Operating Frequency | 0 to 20 (GHz) |
| Impedance | 50 (Ω) |
| Contact Plating | Gold |
| Contact Material | Beryllium Copper |
| Maximum Operating Temperature | +125 (°C) |
| Size | Standard |
Inventory for the SMA-J-P-H-RA-TH1 by Samtec from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
11,413
|
|
Visit Site | |
|
★ Featured
|
11,474
|
|
Visit Site | |
|
★ Featured
|
14,056
|
|
Visit Site | |
|
★ Featured
|
313
|
|
Visit Site | |
|
★ Featured
|
19,000
|
75 x $4.03
|
Visit Site | |
| Arrow Europe |
6,493
|
|
Visit Site | |
| Avnet America |
500
|
|
Visit Site | |
| Farnell UK |
807
|
|
Visit Site | |
| Newark |
1,011
|
|
Visit Site | |
| Onlinecomponents |
1,598
|
|
Visit Site | |
| Powell Electronics |
177
|
|
Visit Site | |
| RS UK |
12
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
2,370
|
|
Visit Site | |
| TTI Americas |
3,166
|
|
Visit Site | |
| Verical |
2,149
|
|
Visit Site | |
| element14 Singapore |
807
|
|
Visit Site |
No issues have been reported for the SMA-J-P-H-RA-TH1
If you experienced any issues with the symbol or footprint, please report it.
